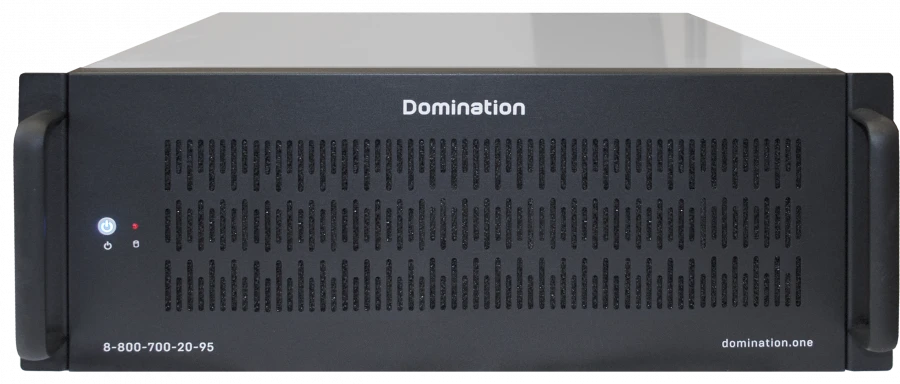

32-Channel Hybrid Video Server for IP and Analog Cameras - Domination Hybrid-X-IPX-L-Z

Wearable Video Systems

Manufacturer:VIPAKS+ LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Domination Hybrid-16-L-MDR video server Domination Hybrid-16-IP-4-L-MDR video server

Description

Network 32-channel video server is designed to connect up to 16 analogue cameras and up to 16 IP-cameras additionally. At the same time there is a possibility to switch any analogue channel to IP. Support for IP-cameras (with any resolution) of any manufacturer from the list of integrated cameras.

Supported formats for analogue cameras: AHD/HDCVI/TVI/CVBS. The video server comes with free software for remote configuration of the video server and for viewing cameras connected to the video server. The video server has baskets for installing up to 4 HDDs (any manufacturer) with the capacity of each up to 18TB.

Incoming stream up to 800 Mbit/sec. 2 network boards. Support for audio channels of IP-cameras.

Support for rotating IP-cameras. Domination Linux operating system protected from viruses and external influences is installed on the video server. Resolution for analogue cameras (main stream): 1920x1080.

Specifications

Number of licenses for connecting IP cameras

1...32 pcs

Number of audio channels

1...32 pcs

Operating system

Domination Linux

Motion detector

Support for built-in IP camera detectors

Maximum recording speed per channel

No restrictions pcs

Recording mode

Continuous, by motion, by schedule, manually by operator, by contact closure/opening, by signal loss (recording duration without limitation), by video analytics events, event stream recording, audio recording.

Archive Mirroring

Armoured glass

Resolution per channel pixels

No restrictions

Supported HDD capacity

1...18

Maximum incoming flow

800

Maximum outgoing flow

800

Built-in network card

2 x LAN 10/100/1000 Mbps

Protocol/standard for connecting to IP cameras

HTTP, RTSP, ONVIF

Video output

VGA and/or HDMI

Power supply voltage

AC220 - 240V, 50Hz

Maximum power consumption

350 W

Temperature mode

5...40 °C

Size WxHxH (mm)

430 x 450 x 180

Number of HDD bays

4 pcs

HDD baskets with hot-swap function

Redundant power supply unit

Maximum recording speed per channel

Analog cameras 1920×1080 - 15 fps, 720p and below - 25 fps, IP cameras - up to 60 fps

Resolution per channel pixels

Analog cameras up to 1920×1080, IP cameras - no restrictions

Type of video cameras to be connected

AHD/HDCVI/TVI/CVBS

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
