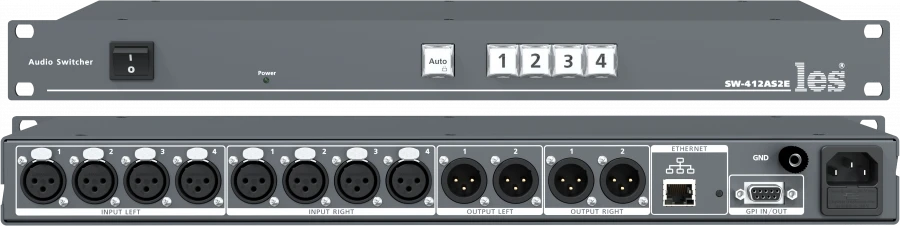

4-in-1 Symmetrical Stereo Signal Switcher SW-412AS2E for Efficient Audio Management

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The switch allows you to connect any of the 4 stereo inputs to a single output equipped with a 1 to 2 splitter. The switcher can be operated in automatic or manual modes, controlled locally, via Ethernet and GPI signals. Switching between inputs via "no click" MUTE. Transmission coefficients for each input are programmable and can be changed and stored in non-volatile memory.

Specifications

Number of stereo inputs

Format of audio signals

Analog, symmetrical

Input connector

3-pin XLR female

Input type

differential, electronic

Input impedance

600 ohm

Number of stereo outputs

Output type

floating differential, electronic

Output connector

3-pin XLR male

Output impedance, not more

60 ohm

Constant component at the output, not more than

0.025 V

Nominal transmission ratio

Input gain adjustment range

-6 - +7

Transition time between channels

100...250

Level bandwidth -3 d

10...100000

Nonlinear distortion coefficient at nominal output signal level at 1 kHz, not worse than

0.008 %

Power supply voltage

230 V

Power consumption

10 W

Operating temperature range

+5 - +40 °C

Overall dimensions (W x H x D)

483...44 mm

Weight

2.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
