5-Axis Portal Milling Processing Center SK6P300 CNC Model 4/1.25/L1

Available for Import

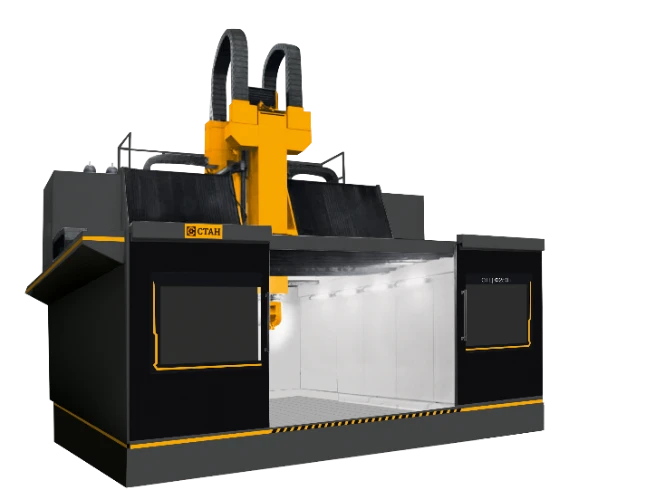

5-Axis Portal Milling Processing Center SK6P300 for High Precision Machining

Metal Machining Centres

Manufacturer:STANKOTECH OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Five-axis milling machining centre of portal type model SK6P300/6 CNC.Five-axis portal-type milling machining centre model SK6P250 CNC sp. 4/1,5/U1 Five-axis portal-type milling machining centre model SK6P300 CNC sp. 4/1,5/U1 Five-axis portal-type milling machining centre model SK6P300 CNC sp. 8/1,5/U1 5-axis portal-type milling machining centre model SK6P250 CNC version 4/1,25/L1

Description

Five-axis gantry-type milling machining centre model SK6P250 with working area (length x width x diameter, mm) 5000 x 2500 x 1250 mm for simultaneous five-axis machining of aluminium alloy parts

Specifications

Type of product according to PP RF 616

5-axis portal machining centers

Machine type

Metalworking centers

Maximum torque on the spindle, nm, not less

390

Spindle speed

0...15000

Power of the working machine, not less than

63 kW

Speed of movements along Z coordinate, m/min

0...20

Speed of movements along Y coordinate, m/min

0...40

Speed of movements along X coordinate, m/min

0...40

Z coordinate range of motion

0...1250 mm

Range of movement in Y coordinate

0...3200 mm

Movement range in X coordinate

0...4700 mm

Layout type

movable bridge

Double-sided positioning accuracy in X, Y, Z axes

0.02 at a length of 1 m. mm

Maximum table load

10,000 per square meter. kg

Shape of blanks

???????,?????

Desktop size

4000x2500 mm

Working area height for 5-sided machining

1250 mm

Working width for 5-sided machining

2580 mm

Working area length for 5-sided machining

4080 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
