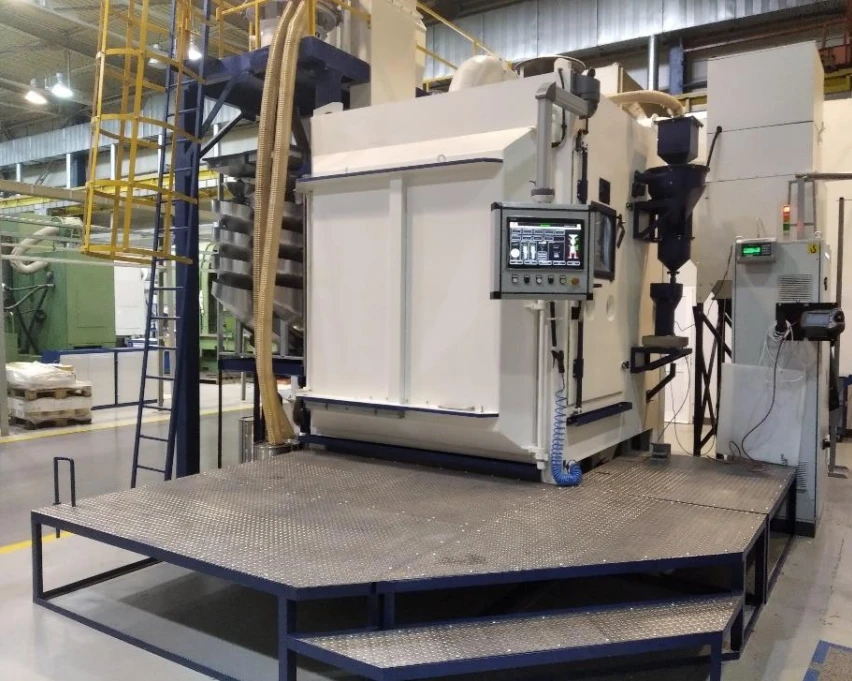

8-Axis Robotic Shot Peening System for Enhanced Surface Treatment

The system comprises a blast chamber, within which a single motorised rotary turner is mounted on a loading door, within which a single motorised rotary table with satellites and with servo drives. The blasting is carried out by a 6-axis robot. 6-axis robot.

• - The parts to be blasted are rotated to a predetermined angle by

by satellites located on the main rotary table and can be can be programmed according to the requirements of the blasting process. blasting. The movement of the workpiece into the machining zone is realised by the rotation of the main rotary table.

by rotating the main rotary table.
