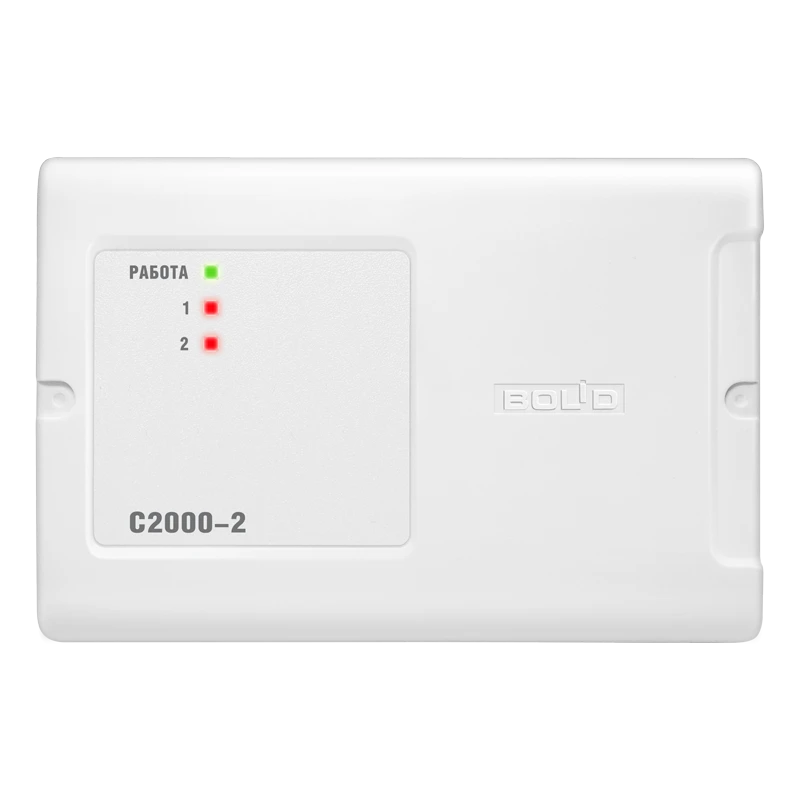

Available for ImportAccess Control Controller for One or Two Entry Points C2000-2 - Secure Access Management
Manufacturer:BOLID CJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Designed for access control via one or two access points by reading codes of presented identifiers (Proximity cards, Touch Memory keys and PIN codes), checking access rights and closing (opening) relay contacts controlling locking devices (electromechanical and electromagnetic locks and latches, turnstile, barrier).
Specifications
Controller power supply
10.2...15 V
Operating temperature range
-30...50 °C
Average life of the controller
10 year
Controller weight
Not more than 0.3 kg
Overall dimensions of the controller
156×107×39 mm
Size of event buffer in non-volatile memory
32768
Maximum commutated current of each relay
7 A
Number of executive relays for controlling shut-off devices
2 pcs
Distance from the controller to the reader
Not more than 100 m
Number of connected readers
2 pcs
Maximum current consumed by the controller from an external DC power source
max. 120 mA
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
