Active Control Panel KR-51C with 5 Buttons, GPI Signals, USB, Built-in Power Supply

Available for Import

Active Control Panel KR-51C for External Device Control with GPI Signals

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

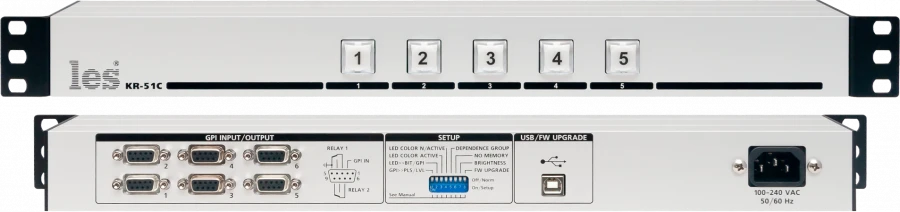

The console is designed to control external devices using GPI signals, has 5 buttons on the front panel, on the rear panel there are DB9F, USB connectors and 8-position DIP-switch. Each DB9F connector corresponds to a different control channel and includes: two relay switching groups, one fully isolated, the other with a grounded switching contact, one GPI input signal. The USB connector is used for remote control and configuration of the remote control from a PC. DIP-switch is used for local setting of the device operation modes. Control buttons have the ability to change the inscription, backlight colour, installation of a protective hinged cover. The warranty period is 24 months.

Specifications

Number of control buttons

5 pcs

Number of GPI IN/OUT connectors

5 pcs

GPI connector type

DB9F

Maximum permissible load of GP output relay contact groups

30 V

Maximum permissible load of GP output relay contact groups

0.5 A

GPI input threshold for GPI input signals

1.4 V

Number of USB connectors

1 pcs

USB connector type

USB type B

AC mains supply voltage

100...240 V

Power consumption from AC mains, no more than

6 W

Operating temperature range

5...40 °C

Overall dimensions excluding connectors (W - H - D)

483...44 mm

Weight

1.08 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
