Aeration Receiver for Wet Grain APVZ - Effective Grain Handling Solution

Purpose: reception of grain pile from the field, preliminary ventilation with atmospheric air, short-term storage and feeding for further sorting and drying. Design features: capacity from 20 to 100 cubic metres.

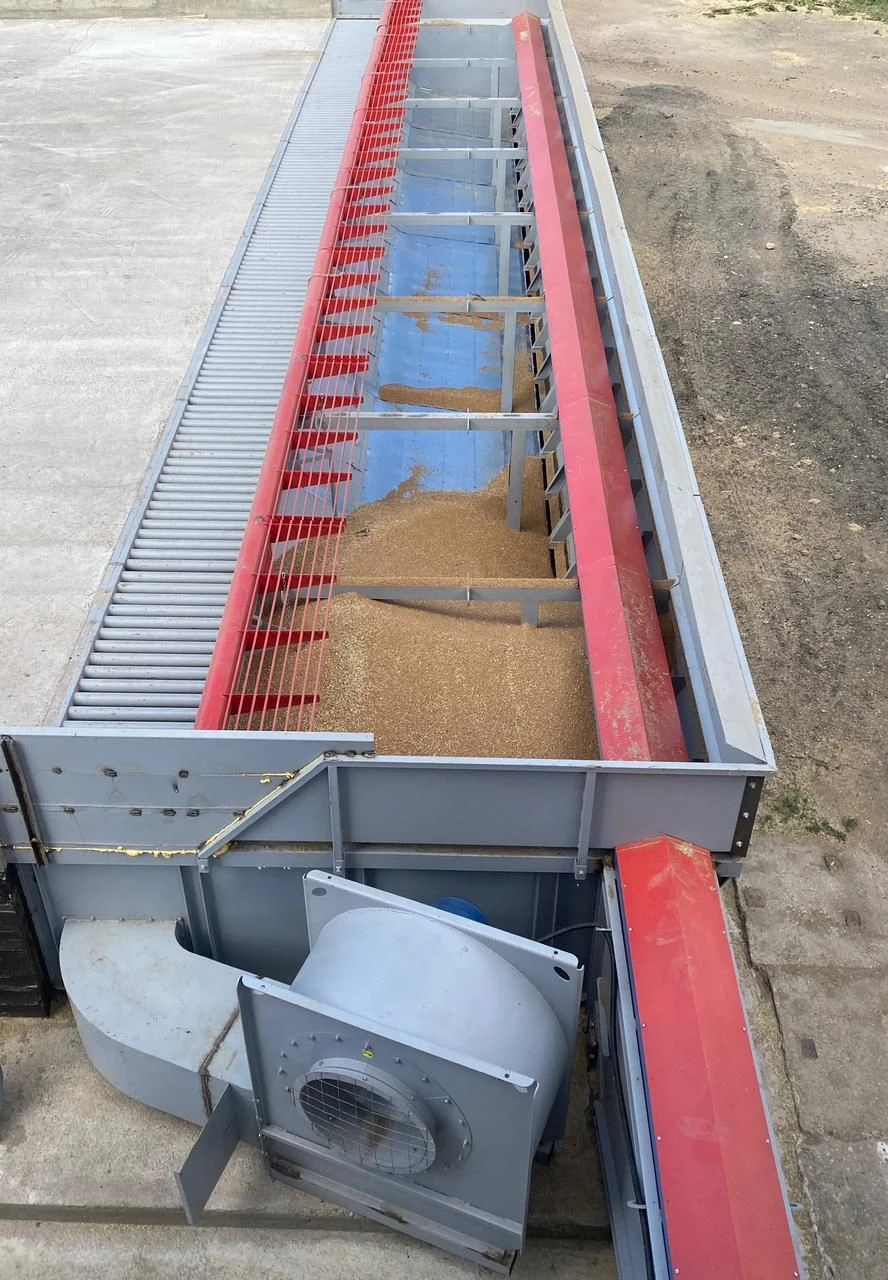

It consists of separate sections. The bottom of each section is covered with perforated galvanised sheet. Under it there is an air chamber into which air is supplied through a duct with the help of a fan to ventilate the grain.

Complete cleaning of the reheater is also carried out by ventilation. A chain scraper conveyor (TCS) with a capacity from 50 to 100 tonnes/h is built into the recharge conveyor. Grain enters the TDC by gravity.

Advantages: storage of wet grain up to 24 hours due to ventilation; no water (installed on the tape foundation); feeds grain in the order of arrival from the field; does not traumatise grain; convenient grain dump (side and rear); safe in operation; low ramp (height 1350mm).
