Agricultural Cargo Semi-Trailer 4589R4 for Transporting Goods

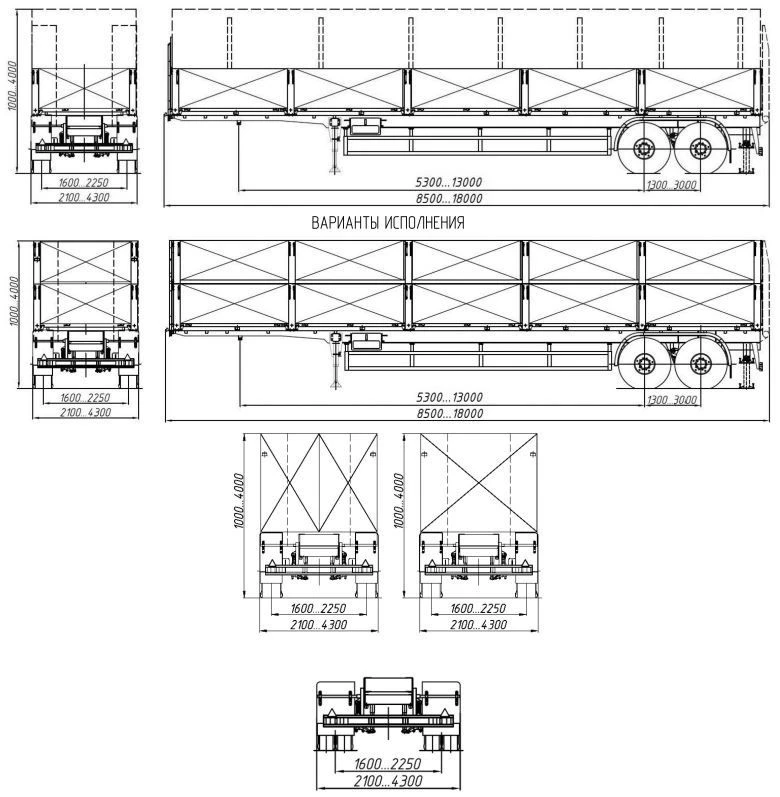

Semi-trailer cargo special - for transporting agricultural cargo (grain carrier), animals and construction materials. The flatbed can be equipped with removable racks, with rear swing gate, with ladders, with removable cones. Internal dimensions of the body: 12500x2420x1650mm.

Platform volume: 50 cubic metres Thickness: panels of boards 2 mm; planking of the base 3 mm. There is a ladder for easy access to the body. Awning/frame "DOMIKOM" with winding device and platform for awning maintenance.

Coupling kingpin 2/3,5 inches, support device JOST/GF (Germany) with two-speed drive. Trailer suspension is spring or pneumatic. Semitrailers can be equipped with single or double axle coupling.

Braking system: <ul> <li>- working: with pneumatic pneumatic actuator with two-wire system with EBS/ABS WABCO</li> <li>parking: spring energy accumulators</li> <li>handbrake</li> </ul>Frame: <ul> <li>- Welded, with two spars made of I-beams of variable cross-section</li> </ul>.
