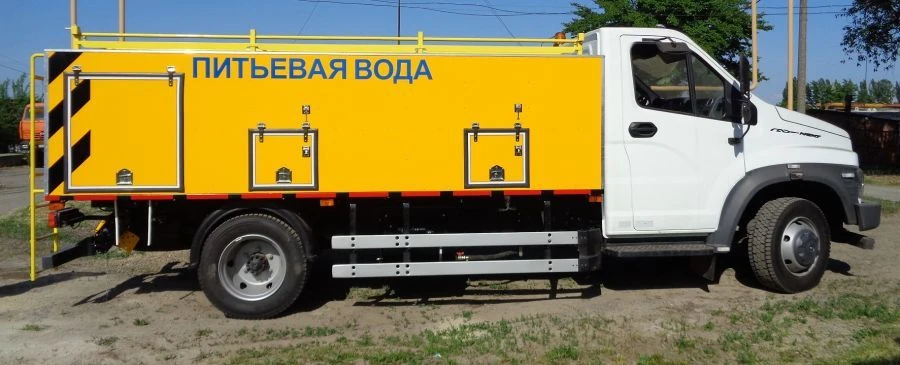

Airport Drinking Water Refueling Truck MBA-01 on GAZelle NEXT Chassis

Available for Import

Airport Drinking Water Refueling Truck MBA-01 for Efficient Aircraft Water Supply

Special Purpose Vehicles

Manufacturer: DKDJET LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Aerodrome drinking water autofueller MVA-01 is designed for filling with drinking water, short-term storage and draining of water from the compartments of all types of aircraft (AC). In order to ensure operation in cold climatic conditions, the water tank and all equipment are mounted in a closed, heated, heat-insulated compartment. MVA-01 is mounted on the base of a motor chassis, which is chosen by the customer, a trailer version and a set with a ladder are possible. MVA-01 provides: water transportation to refuelling points; closed refuelling of own tank from filling station; closed refuelling of aircraft; draining of unused water from tank by gravity; temporary (up to 24 hours) storage of water in tanks; filtration of water supplied to aircraft tank; accounting of water supplied to aircraft tank; control of water pressure supplied to aircraft tank; adjustment of maximum water pressure supplied to aircraft tank; control of water level in own tanks, etc.

Specifications

Type of product according to PP RF 616

Special purpose motor vehicles other, not included in other groupings

Vehicle kerb weight

3700...6500 kg

Superstructure material

steel frame lined with aluminium composite

Rear wall design

Aluminum composite

Side panel design

Aluminum composite

Engine type

diesel; gasoline

Body type

special superstructure

Transmission type

mechanical

Filling system capacity

60 l

Rear platform serviceable height range

0...3000 mm

Nominal capacity of the tank for draining water

0.4...1.75 l

Rated capacity of drinking water tank

0.5...3.5 l

Type

Motor vehicle

Width

2200...2600 mm

Length

5500...8800 mm

Height

1800...2900 mm

Base chassis

GAZelle NEXT C41R92, GAZelle NEXT C42R92, GAZ C41R33, GAZ C41RB3, KAMAZ-4308, KAMAZ-4308-C4, KAMAZ-4308-C5, KAMAZ-4308-G5, KAMAZ-4308-N3, KAMAZ-4308-A3, KAMAZ-4308-C3, KAMAZ-4308-R4.

Assignment

MVA-01 is designed for transportation, short-term storage and refuelling of drinking water, as well as for draining water from compartments of all types of aircrafts.

Name

Airfield drinking water refuelling truck MVA-01

Designation

MVA-01

locking mechanism

shut-off device

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
