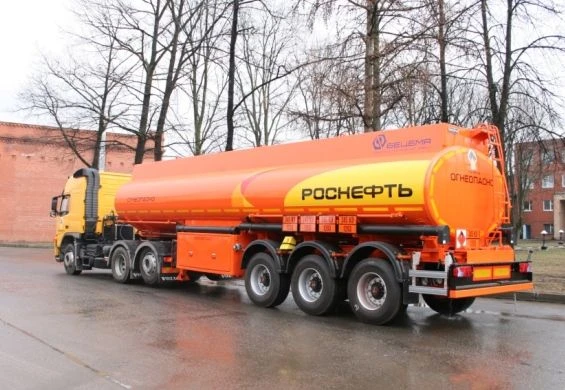

Aluminum Tank Semi-Trailer for Light Oil Products BCM-44.4 - Ideal for Transportation

Technical characteristics Vessel cross-section elliptical Load on tractor fifth wheel, kg11 000 Curb weight of semi-trailer, kg, not more than6 500 Vessel material-aluminium alloy AMG-5 Vessel wall thickness, mm6 Thickness of the bottom, mm6 Number of compartments, pcs1 ... 5 Frame for suspension, material steel 09G2S Suspension brackets, material steel 09G2S Pin with support plate2" Support deviceJOST Load capacity of the support device (under the weight of fully loaded tank), tonnes24 (50) Separate drain, drain side to be determined separately Loading hatches and drain valves of each compartment are sealed, drilling diameter 4 mm. Sealing of bolt fastenings of loading hatches (necks) and drainage devices is provided.

Protective fencing of filling necks along the whole length of the vessel (ecological box). Aluminium manhole cover, pcs1 ... 5 Pneumatically controlled bottom valve DN 100, pcs1 ...

... 5 Pneumatic bottom valve control unit, 1 piece ...
