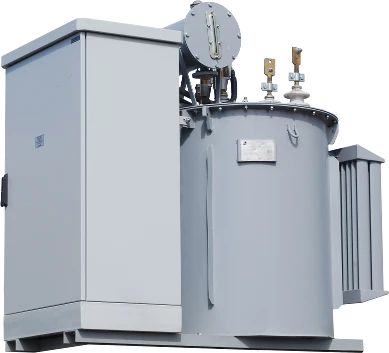

Arc Suppression Reactors Series RDMK - Effective Voltage Stabilization for Networks

Reactor arc-quenching series RDMK is designed for compensation of capacitive component of current at single-phase earth faults in air, cable and air-cable networks with rated voltage up to 35 kV inclusive, with frequency 50 Hz. Control of reactive and active conductivities of the DGR is performed by the control automation "Bresler-0117.060" according to the real current measured values of compensation tuning and zero sequence contour (ZSC) goodness of the network. The time of adjustment to the resonance mode does not exceed 3 seconds. The arc suppression reactor is connected to the neutral point of the network. In the absence of an explicitly derived neutral point in the network, the connection is made to the neutral point of a special neutral-forming connection filter with the winding connection scheme "zigzag with derived neutral".
