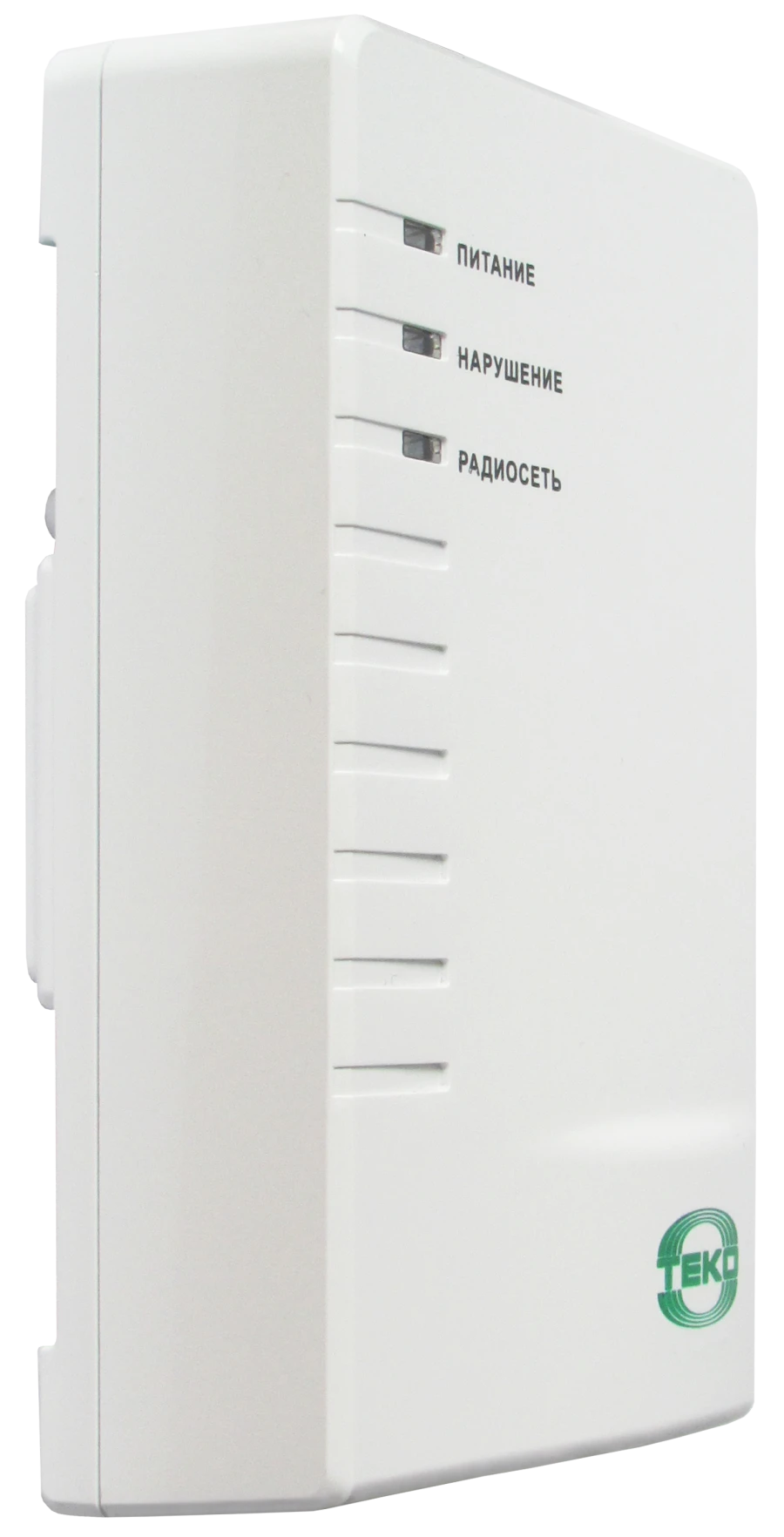

Astra-RI-M RR Radio Expander for Reliable Sensor Signal Reception
Manufacturer:
NTs TEKO CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Radio expander "Astra-RI-M RR" is designed to receive signals from registered detectors (sensors) over the radio channel 433 MHz and output to the built-in relays and the interface line RS-485. 3 relays and 1 output "open collector".
Three modes of operation:
- autonomous operation as a receiving device with support for 48 radio devices of different types,
- extender of addressable wireless zones as part of the Astra-RI-M system with Astra Pro series PPKOP with support for up to 192 radio devices of different types,
- repeater to increase the range of radio network coverage.
Three modes of operation:
- autonomous operation as a receiving device with support for 48 radio devices of different types,
- extender of addressable wireless zones as part of the Astra-RI-M system with Astra Pro series PPKOP with support for up to 192 radio devices of different types,
- repeater to increase the range of radio network coverage.
Specifications
Outdoor radio range in repeater mode
1500 m
Power in transmission mode, not more than
10 mW
Power supply voltage
10...28 V
Consumption current at 12 V, not more
1 A
Overall dimensions, mm
136x86x38 mm
Type of communication line with child devices
Radio channel
Main and backup power supply control inputs
In stock
Number of programmable analog inputs / outputs type OK
1 pcs
Signal relay outputs
3 pcs
Operating temperature
-10...55 °C
Radio operating frequency, MHz
literature 1 - 433.42
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
