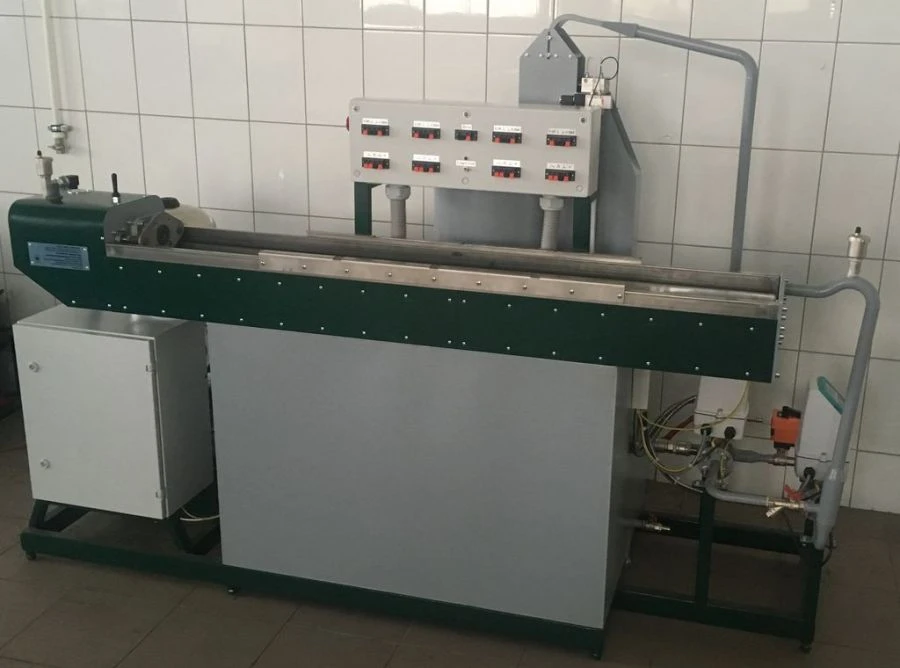

Automated Calibration System UPRS-5/3 for Liquid MeasurementAvailable for Import

Automated Calibration System UPRS-5/3 for Precise Liquid Measurement and Flow Control

Flow Measurement Devices
Manufacturer:IPF NEPTUN LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Installation of verification automated UPRS+V-0-0-0-R-2-0-0-0-2-0,001-0,010-0003-CInstallation of verification automated UPRS+V-0-0-0-0-R-1-0-0-0-2-0,001-0,010-0003-CAutomated verification unit UPRS-5/3Installation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,005-0000-0015-CAutomated verification unit UPRS-3/2
Installation of verification automated UPRS+V-0-0-0-R-1-0-0-2-0,01-0000-0015-CInstallation of verification automated UPRS+V-0-0-0-R-1-0-0-0-2-0,010-0000-0005-CInstallation of verification automated UPRS+V-0-0-0-R-2-0-0-2-0,005-0000-0015-CInstallation of verification automated UPRS+V-0-0-0-R-2-0-0-0-2-0,005-0000-0003-CInstallation of verification automated UPRS+V-0-0-0-0-R-2-0-0-2-0,001-0,010-0005-CInstallation of verification automated UPRS+V-0-0-0-R-1-0-0-0-2-0,005-0000-0003-CInstallation of verification automated UPRS+V-0-0-0-R-2-0-0-2-0,010-0000-0015-CAutomatic verification unit UPRS-15/1Installation of verification automated UPRS+V-0-0-0-R-1-0-0-2-0,010-0000-0015-CAutomated verification unit UPRS-5/1Automatic verification unit UPRS-15/1Automated verification unit UPRS-5/2Automated verification unit UPRS-15/3Automated verification unit UPRS-5/1Installation of verification automated UPRS+V-0-0-0-R-2-0-0-2-0-0,005-0000-0005-CAutomated verification unit UPRS-15/2Installation of verification automated UPRS+V-0-0-0-R-2-0-0-2-0,010-0000-0003-CAutomatic verification unit UPRS-3/3Installation of verification automated UPRS+V-0-0-0-0-R-1-0-0-0-2-0,001-0,010-0005-CInstallation of verification automated UPRS+0-0-0-0-0-0-0-0-0-0-0-2-0,001-0,010-0015-CInstallation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,010-0000-0015-CInstallation of verification automated UPRS+V-0-0-0-R-2-0-0-2-0,010-0000-0005-CAutomated verification unit UPRS-3/2Automated verification unit UPRS-15/2Installation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,005-0,010-0003-CInstallation of verification automated UPRS+V-0-0-0-R-1-0-0-2-0,005-0000-0005-CInstallation of verification automated UPRS+0-0-0-0-0-0-R-0-0-0-0-2-0,005-0000-0003-CAutomated verification unit UPRS-5/2Automated verification unit UPRS-15/3Automated verification unit UPRS-3/1Automated verification unit UPRS-3/1Automated verification installation UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,001-0,010-0005-CInstallation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,010-0000-0003-CInstallation for verification automated UPRS+0-0-0-0-0-R-0-0-0-0-0-2-0,001-0,010-0003-CInstallation of verification automated UPCS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,005-0,010-0015-CInstallation of verification automated UPRS+V-0-0-0-0-R-1-0-0-0-2-0,001-0,010-0015-CInstallation of verification automated UPRS+V-0-0-0-0-R-2-0-0-2-0,001-0,010-0015-CInstallation of verification automated UPRS+V-0-0-0-0-R-1-0-0-2-0,010-0000-0003-CInstallation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,005-0000-0005-CInstallation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,010-0000-0005-CAutomatic verification unit UPRS-3/3Installation of verification automated UPRS+0-0-0-0-0-0-0-R-0-0-0-0-2-0,005-0,010-0005-C

Description

Measurement, reproduction, storage, transmission of mass units, volume of liquid in flow, mass, volume flow rate of liquid by reference instruments: weighing devices or liquid flow meters as part of the installation. Control: PC+PO. GR SI RF ? 52183-12.

Specifications

Mark
UPRS-5/3
Application
Working standard 1 p. for weighing devices, working standard 2 p. for flow meters as part of the installation in accordance with 1 part of the SPS, approved by the PCT Decree from 07.02.2018 ? 256, when transferring the corresponding units of quantities to
Working pressure
0.01...0.4 MPa
Minimum flow rate, Qmin
0.005
Maximum flow rate, Qmax
5
Tolerance limits of the relative error of the installation when measuring mass or volume with weighing devices (±)
0.08 %
Tolerance limits of relative error of the installation when measuring the volume, mass by reference flow meters - liquid meters
0.15 %
Measured medium
water
Ambient air temperature during operation
15...25 °C
Service life, at least
B1/B8 2100/900 MHz year
Warranty period of operation
B1/B8 2100/900 MHz
Interval between verifications
B1/B8 2100/900 MHz
Name
Automated verification unit

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
