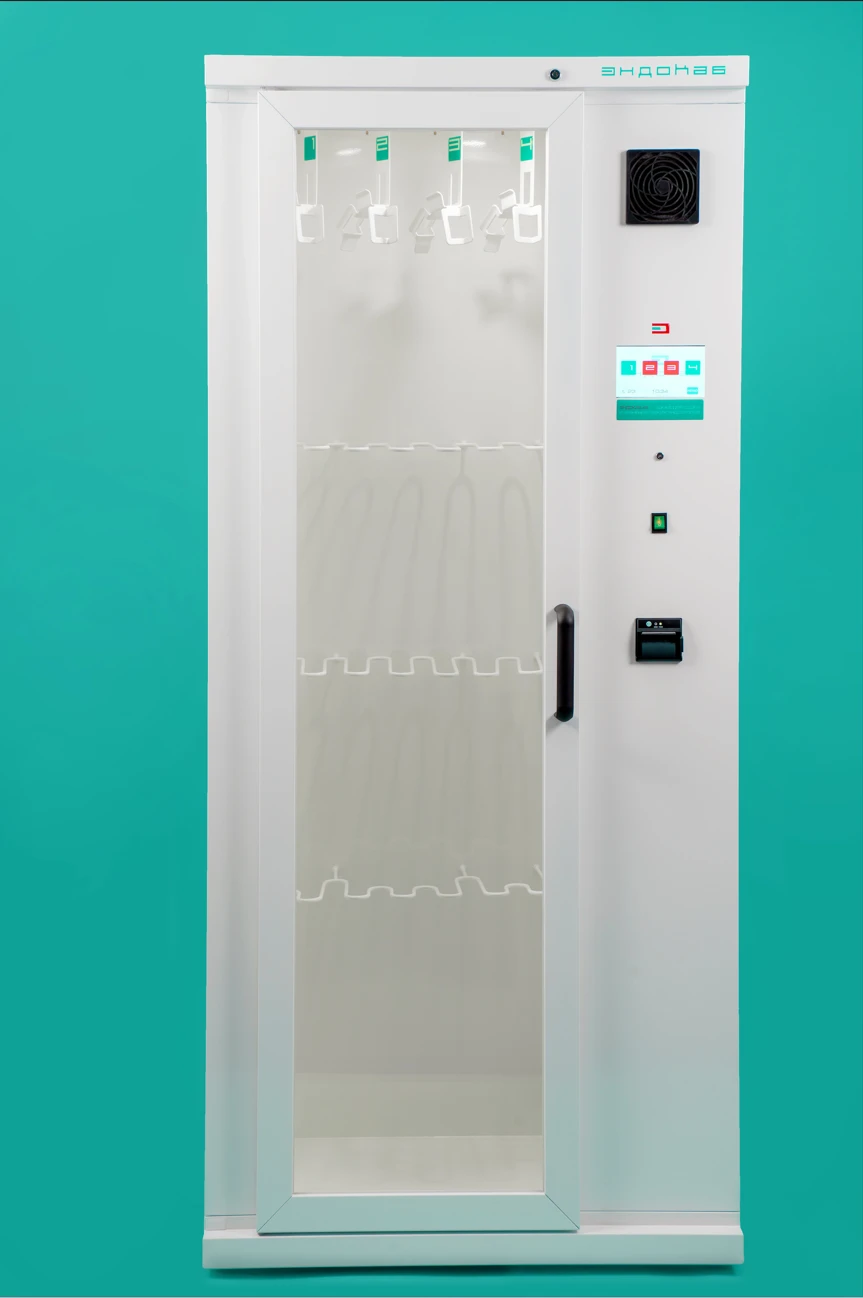

Automated Drying and Storage Device for Flexible Endoscopes ENDOCAB Model ENDOCAB-4A

Available for Import

Automated Drying and Storage Device for Flexible Endoscopes - ENDOCAB-4A

Medical Equipment Supplies

Manufacturer: BANDEK-MS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The cabinet is made of stainless steel with polymer-powder coating with brackets (holders) and guides of "snake" type placed inside the working chamber, as well as a basket for accessories. It is controlled via a colour LCD touch screen, which provides full automatic control of the drying and storage processes. Drying with heated air is carried out by blowing endoscopes outside and blowing the internal channels of endoscopes inside with purified air, which has passed through the mechanical filtration system (preliminary, external HEPA class H14, internal fine filter 0.2 microns), the system of bactericidal treatment by means of UV-lamps, as well as through the heating system (from 25C to 45C), which provides aseptic storage conditions up to 30 days. The apparatus is equipped with internal illumination of the working chamber with automatic switching on and off of illumination, as well as sound signal of the open door. NKMI 271740

Specifications

Type of product according to PP RF 616

Medical devices, including surgical, other, not included in other groupings

Construction material

Stainless steel AISI 304 with polymer powder coating

Color of construction coating

white

Number of endoscope holders with applied protective coating

4 pcs

Guide for the flexible part of the endoscope "snake" type (at least)

2 pcs

Arrangement of endoscopes inside the chamber

vertically

Door opening

180

Door insert

Tempered glass

Switching the enclosure chamber lighting on and off

Automatic on opening and closing of door

Enclosure chamber illumination lamp

2 pcs

Availability of adapters for connecting channels of all major types (brands) of endoscopes placed on brackets

Pentax

Drying temperature range

25...45 °C

Warm air drying

All channel endoscope

Air supply by internal pump with fan

180

Internal air fine filter (individual for each channel), µm

0.2

External HEPA fine filter (cleaning class H14)

1 pcs

Coarse pre-filter

FPU

UV germicidal lamp located in the technical compartment

2 pcs

Display of information about operating modes on the built-in touch screen (LCD), which has no tactile feedback, size p

155x85

Integrated thermal printer

For printing out a report on operating modes for each endoscope holder (bracket)

Power

220...230 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
