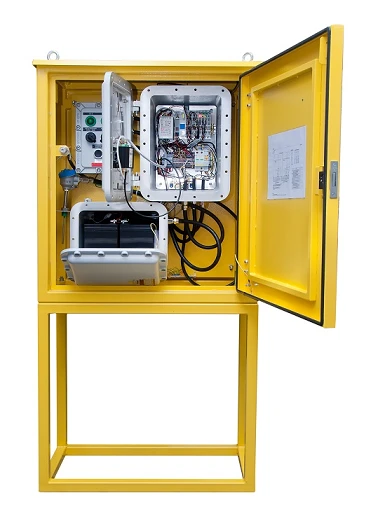

Automated Remote Control System for Shut-off Valves ASDUZA-A-EP-3A-1-V-N for Efficient Valve Management

Remote Control Electronics

Manufacturer: SERVISSoft LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Automated system of remote control of shut-off valves ASDUZA-S-EP-3A-3A-1-V-N

Description

2.1ASDUZA is designed for controlling electric actuator of shut-off valves (hereinafter - actuator) by means of telemechanics system, as well as for receiving information via GSM wireless communication channel about main technological parameters of the object and for protection against unauthorised intrusion into the object. The system provides explosion protection in accordance with the requirements of GOST 31610.0-2014 (IEC 60079-0:2011), GOST 31610.11-2014 (IEC 60079-11:2011), type of explosion protection - "Flameproof enclosure" and "Intrinsically safe electrical circuit", explosion protection level "explosion-proof" for mixtures of combustible gases and vapours with air of category IIB+H2 according to GOST 31610.0-2014 (IEC 60079-0:2011). System explosion protection marking: 1Ex d [ia Ga] IIB+H2 T5 Gb X according to GOST 31610.0-2014.

Specifications

Connection

Radio channel

Processor architecture

X86

Battery type

Li-ion

Number of RS485/RS232 ports for connection of external devices (e.g. flow meter, gas volume corrector, etc.)

1 pcs

Rated DC supply voltage

24 V

Overall dimensions

1650 x 800 x 400, mm

Weight, not more

180 kg

Number of actuators to be connected

1 pcs

Explosion protection marking

1Ex d [ia Ga] IIB+H2 T5 Gb X

Temperature range

-40...55 °C

Relative humidity

98 %

Power consumption

25 W

Rated voltage and capacity of the battery pack

24 V, 26 Ah

Switchable DC voltage of control signals supplied to the actuator, not more than

24 V

Number of channels for monitoring the integrity of circuits of executive equipment

2 pcs

Total number of analog inputs for connection of signals from external sensors

8 pcs

Number of analog inputs for connection of 4 - 20 mA current signals from external gas pressure sensors upstream and downstream o

2 pcs

Number of analog inputs for connection of 0 - 5 V voltage signals from external gas temperature sensor

1 pcs

Number of analog inputs for connection of 0 - 5 V voltage signals from external outdoor temperature sensor

1 pcs

Number of redundant analog inputs for connection of 4 - 20 mA current signals from external sensors

4 pcs

Total number of digital inputs for connection of signals from external sensors and devices

7 pcs

Number of binary inputs for connection of external binary signals of ball valve position (open/closed)

2 pcs

Number of binary inputs for connection of external binary signals of crane unit alarm system

2 pcs

Number of redundant discrete inputs for connection of external discrete signals from external sensors and devices

3 pcs

Number of binary inputs for monitoring the ACDUSA cabinet door position and unauthorized access signal from the AC push-button s

2 pcs

Number of discrete outputs of control signals (opening, closing) by ball valve

2 pcs

Number of GSM modules

2 pcs

Number of SIM card slots

4 pcs

Wireless communication standard

GSM 900/1800

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
