Automatic Mobile Satellite Antenna Don-90A for Reliable Internet and TV Access

Automatic mobile satellite antenna "Don-90A" (hereinafter simply antenna) is designed for Internet access from Yamal series satellites.

Simultaneously with the Internet, the antenna can also receive TV channels from satellite, if a TV tuner is connected to it.

Glass-fibre mirror of the antenna with an aperture of 90 cm, which provides the possibility to transport it in cars, motor boats, planes and helicopters.

Main technical specifications:

Antenna diameter: 90 cm Antenna type:Axisymmetric Number of axes:3 Satellite tuning: fully automatic Transceiver:3W Satellites:Yamal-401, Yamal-402 and Yamal-300K Type of electric motors:collectorless Temperature range:from + 50 to -50 deg. ?. MDM 2510 modem is used with the antenna.

To receive both Internet and TV channels simultaneously, the antenna is equipped with a universal TV tuner.

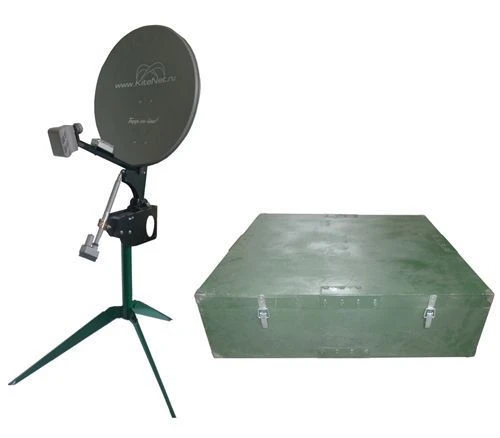

The antenna in the folded position is transported in the boot of a passenger car in 3 boxes measuring 80 x 80 x 40...
