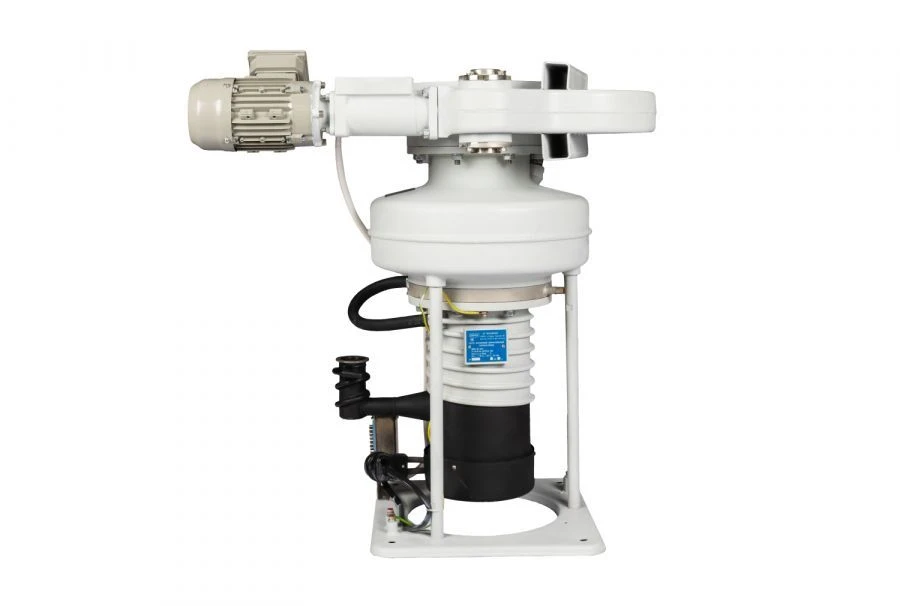

Available for ImportAVDM-160 High Vacuum Diffusion Pump for Efficient Air and Gas Extraction
Manufacturer:VACUUMASH OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Description
Diffusion high-vacuum unit AVDM-160 is designed for pumping out of hermetic volumes of air, gases, vapours and vapour-gas mixtures not aggressive to materials of construction and working fluid and not containing moisture and mechanical contamination. Diffusion high-vacuum unit AVDM-160 is used together with a forevacuum pump, the speed of action of the forevacuum pump is not less than 7,2m3/h. Type of climatic execution UHL4, the unit is not intended for use in fire-explosive production.
Specifications
Weight, kg, not more
65 kg
Overall dimensions (in/out/n), mm, not more
750/720/540 mm
Nominal bore, mm, at inlet
160 mm
Power consumption at rated voltage, W, including pump heater power at rated voltage 380V
800 (+40/-80) W
Power consumption at rated voltage, W, including pump heater power at rated voltage 220V
900 (+40/-80) W
Highest discharge pressure, Pa, not less than
33.3
Ultimate residual pressure, Pa, not more at ambient air temperature: from +25 0C to +45 0C
6,6?10 -4
Ultimate residual pressure, Pa, not more at ambient air temperature: from +10 0C to +25 0C inclusive.
6,6?10 -5
Rapid action in the range of working pressures from 6.6x10 -4 to 1.3x10 -1Pa, l/sec.
310 (+/-25)
