Box-Type Dump Trailer, Modification 85830F, Configuration 85830F-18B

Available for Import

Box-Type Dump Trailer for Efficient Cargo Transport - Model 85830F-18B

Versatile Vehicle Trailers

Manufacturer: RIAT OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

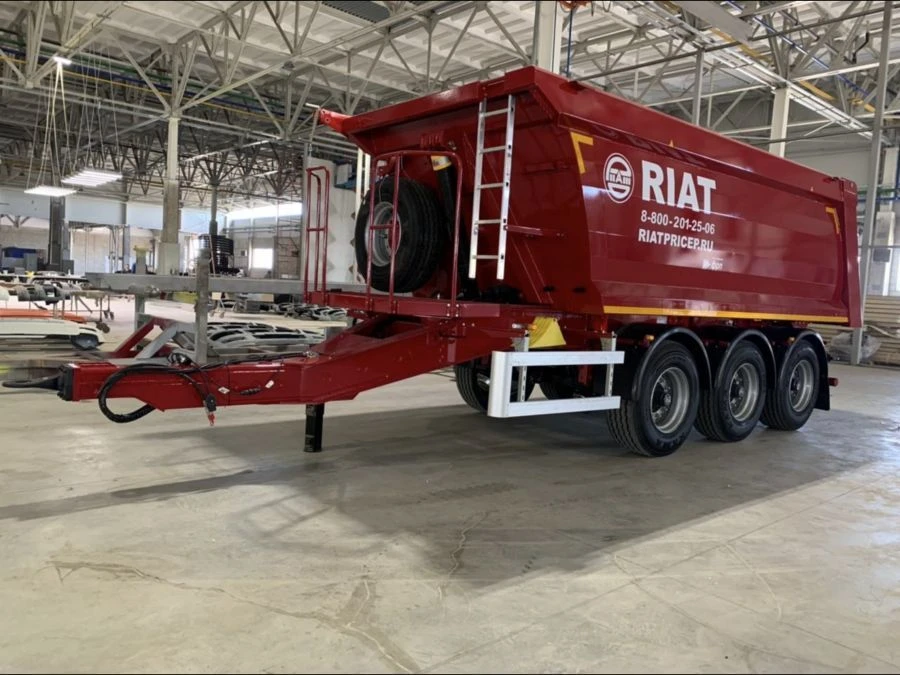

BOX-TYPE tipper trailer. Equipment 85830F-18B. Overall dimensions of the trailer (DxWxH): 8940x2550x3020 mm.

Internal dimensions of the body (DxWxH): 5140x2310x1530 mm. Cargo volume: 18 cubic metres. Weight indicators: Curb weight: 7200 kg.

Payload: 20800 kg. Gross weight: 28000 kg. Drawbar eye load: 1000 kg.

Load on bogie: 27000 kg. Height of drawbar eye: 650 mm. Unloading direction: Backwards.

Platform lift angle: 45º ... 50º. Track: 2045 mm.

Due to the rectangular cross-section of the platform it is easier to clean the platform from the "stuck" load. Extended service life of the semitrailer metal structure due to the use of high-strength steels. Rigid drawbar and central location of axles provides good directional stability, manoeuvrability when turning and reversing.

Specifications

Type of product according to PP RF 616

Semi-trailers) to passenger cars and trucks, motorcycles, scooters and quadricycles

Type of semi-trailer

Dump truck

Type of trailer

Semi-trailer dump truck

Axle load capacity

7.5...12 t

Base machine type

absent

Front track

1840...1900 mm

Rear track

1840...1900 mm

Climatic version
