Brake Chamber Type 27 for Effective Brake Mechanism Operation

43 mm

4.4 kg

-46...80 °C

64...68 mm

1 MPa

In accordance with the vehicle manufacturer's documentation

In accordance with the operating manual of the motor vehicle for which the product is intended.

Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).

Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Compressed air, oil and water vapors may be present.

NO. EAES RU C-RU.MT14.V.00124/19

The procedure for disposal of the product shall be determined by the Consumer.

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

15 mm

16 mm

7.9...8 mm

120 mm

16 mm

Brake chamber - 1 pc. Transport plug - 2 pcs. Passport - 1 pc (when products are delivered in batches - in each transportation package (box (box), crate, etc.)). Packaging - 1 pc.

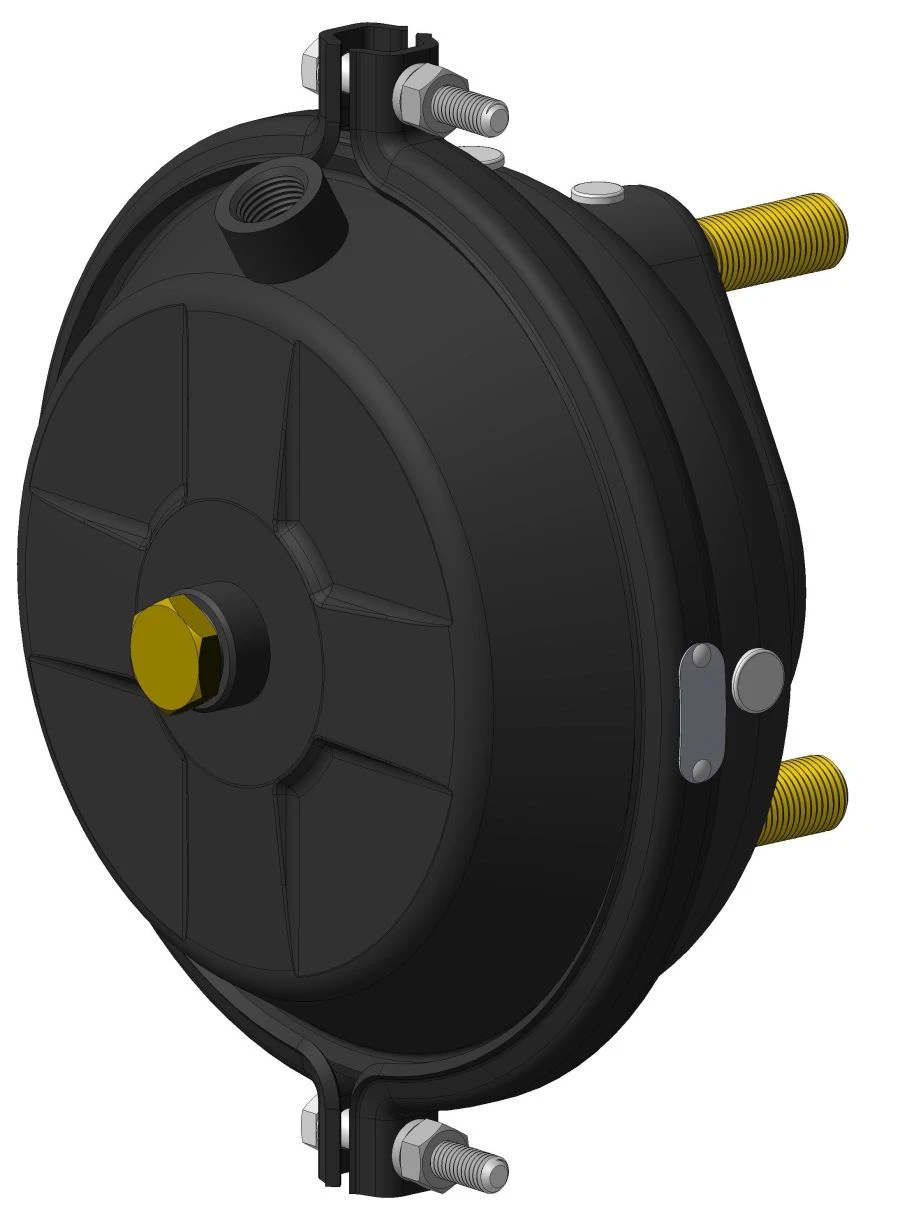

A brake chamber is designed to convert compressed air energy into brake actuation work. A threaded plug is installed in the supply lead D1, located in the centre.
