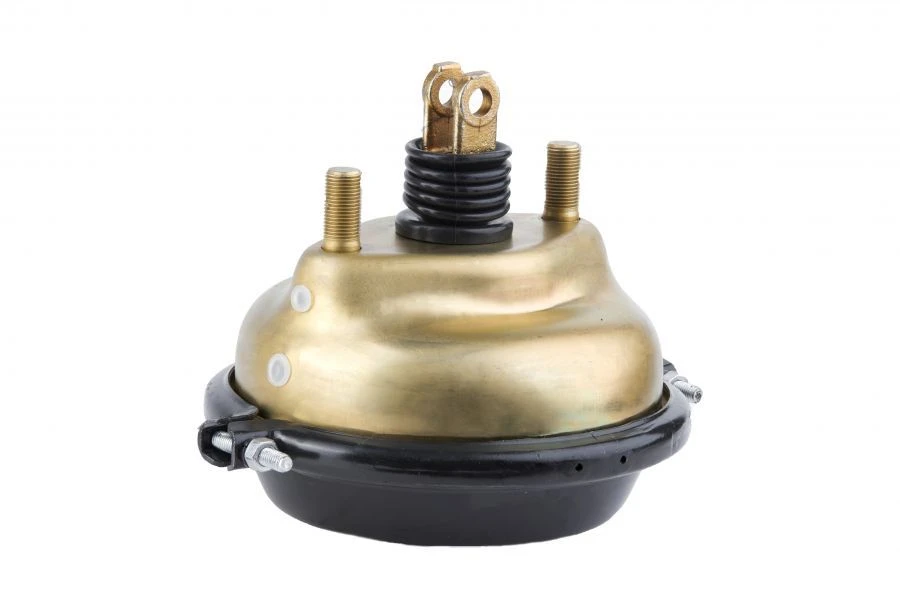

Brake Chamber Type 30 Model 25.3519311-30 for Air Brake Mechanisms

Pneumatic Brake Chambers

Manufacturer: ROSSLAVL BRAKE SYSTEMS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Brake chamber type 30 25.3519311-40 Brake chamber type 30 25.3519311-70

Description

Brake chamber is designed to convert the energy of compressed air into work to drive braking mechanisms

Specifications

Assignment

The brake chamber is designed to convert the energy of compressed air into work to actuate braking mechanisms.

Equipment

Brake chamber - 1 pc. Transport plug - 1 pc. Passport- 1 pc. Packing- 1 pc.

Working pressure

1 MPa

Stroke

71...75 mm

Temperature range

-46...80 °C

Clamp installation angle ?°

35...45 mm

Air inlet connection thread D

16 mm

Outreach of mounting bolts l

34 mm

Connection thread of the mounting bolts d2

16 mm

Width of fork slot B

14.2 mm

Diameter of the connection hole in the plug d1

14 mm

Bolt spacing A

120 mm

Stem outreach L

58 mm

Storage conditions

The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer

Manufacturer's warranty

The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.

Disposal information

The procedure for disposal of the product shall be determined by the Consumer.

Weight

4.184 kg

Certificate of Conformity

NO. EAES RU C-RU.MT14.V.00124/19

Operating medium

Compressed air, oil and water vapors may be present.

Environment

Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.

Safety measures

Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).

Maintenance of the brake chamber

In accordance with the operating manual of the motor vehicle for which the product is intended.

Installation of the apparatus

In accordance with the vehicle manufacturer's documentation

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
