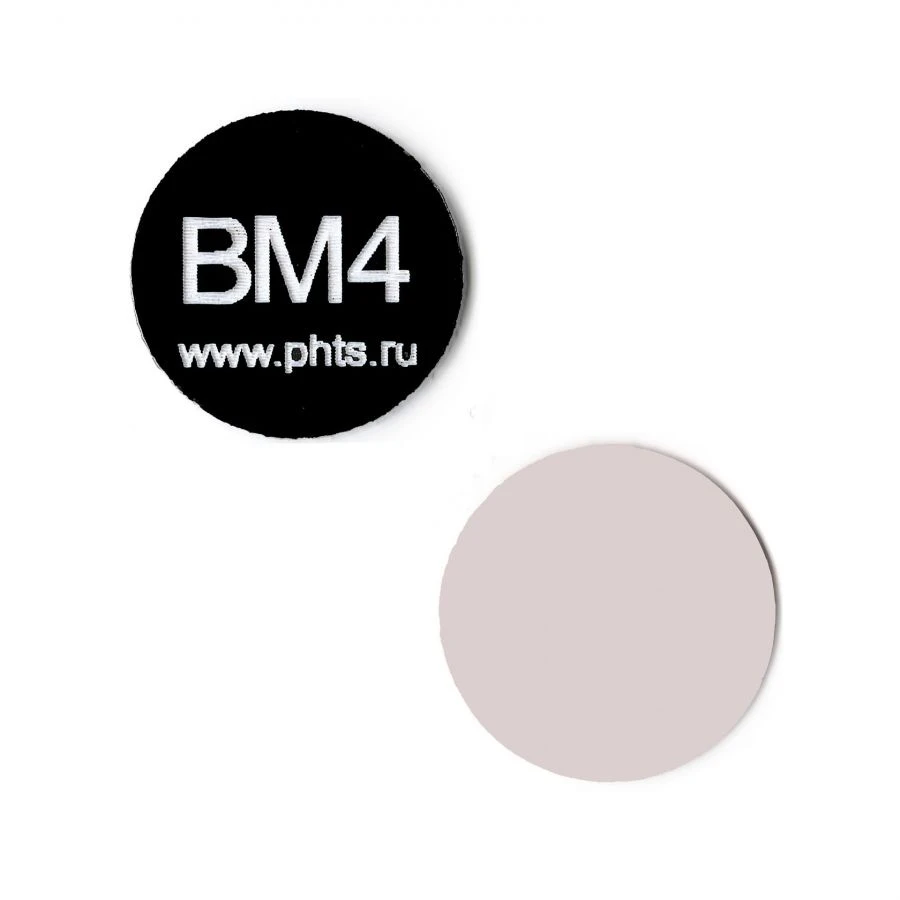

Calibration Fluorescent Target VM4-3 for Laser System Calibration

Specialised Optical Devices

Manufacturer: PHOTONTECHSYSTEM LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The VM4 series calibration target allows calibration of laser systems with minimal impact on the optical circuitry of the instrument. The target is made of an upconversion material and is capable of converting laser radiation in the wavelength range up to 1.64 µm. Due to the polymer base these targets are more resistant to physical damage and moisture.

The possibility of customised ordering allows you to tailor the target to your specific application. Features: can be ordered to individual sizes to meet the needs of the customer; easy to use; does not require recharging with visible light.

Specifications

Diameter of the detection area

20 mm

Daylight charging is required

Polymer type

IK4

Spectral range, µm

0,78-1,07, 1,45-1,64

Failure threshold, mW/cm^2

>700

Sensitivity, ?W/cm^2

<2 (@808 nm), <0.175 (@960 nm), <100 (@1550 nm)

Glow color

Green

Possibility of manufacturing according to individual dimensions

Armoured glass
