CARVIS MD-444SD Lite Multifunctional Car Dash Camera for Vehicle Surveillance

Wearable Video Systems

Manufacturer: UNITECH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

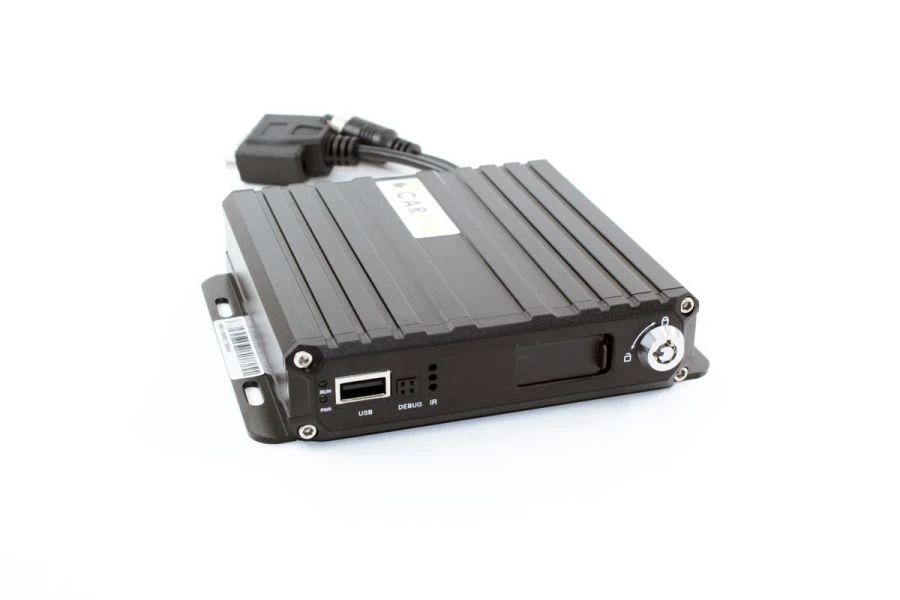

Car DVR CARVIS MD-444SD Lite - a multifunctional device for monitoring and recording video in the car, supporting up to 4 analogue cameras formats AHD, TVI, CVI, as well as up to 4 HD (720p) or Full HD (1080p) cameras. Video recording is carried out on an SD card with a capacity of up to 1 TB, and the recorder can be controlled with a mouse (including wireless).

Specifications

Language

Russian, English

User Interface

GUI, mouse support (wireless)

Safety

User and administrator passwords

Video standard

PAL, NTSC

Compression

H.264, H.265

Video resolution (total frame rate)

4xCIF/D1/960H/720P/1080P (60 fps)

Mode

4xAHD/TVI/CVI/Analogue (1080P) cameras - channel-by-channel switching

Entry

4 pcs

Output

2 pcs

Display on the screen

1, 2, 3, 4 channels, activation of channel by alarm

Compression

G711A/G711/G726/MG726/ADPCM/IMA

Output

1 pcs

Recording mode

Synchronized audio and video recording

Record type

Manual shooting, scheduled shooting, recording over recorded footage, alarm recording/photos

Digital video stream rate

216 kbps up to 4096 Mbps

Digital audio stream rate

Supported data carrier

SD-CARD up to 1TB (not included)

Record Search

By channel, time, type

Playback

1, 4-channel video playback

Power-on mode

Switching on by ACC signal, by schedule

Shutdown mode

Delayed switch-off on ACC signal, scheduled switch-off

Update mode

manual, automatic

Renewal method

USB, SD card

Video input

4 - aviation interface

Video output

1 - aviation interface, 1 - VGA

Audio input

4 - aviation interface

Audio output

1 - aviation interface

SD card

1hSDXC up to 1TB (not included)

IR receiver

Got it

Alarm input

4 digital inputs (positive/negative trigger can be set)

USB

1 USB 2.0 port (support USB disc, USB hub, mouse including wireless)

Indication

PWR (power supply), RUN (operation)

Locking lock

1 pcs

Debug port

1 pcs

Delayed shutdown after complete power failure (ionistors)

Got it

Hot swap media

Got it

Intelligent power management

Yes (the device will turn off automatically when low battery voltage is detected and will turn on when the voltage is restored)

Storage of 1 camera per hour (at fixed bitrate)

960H - 750MB/hour, 720P - 1.1Gb/hour, 1080P - 2.2Gb/hour.

Motion detection

Got it

Restarting the recorder by time

Got it

Short-circuit protection of the power supply of the recorder and peripherals

Got it

Power input

8...36 V

Power output

12 V, 5 V 300 mA

Power consumption

Standby 8.5 mA; maximum consumption 18 W: 12V 1.5 A or 24V 0.75 A

Operating temperature

-40C ... +70C

Size, mm

118x141x31

Equipment

Video-recorder, power cable, alarm input loop, mouse, fixing screws, keys, passport.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
