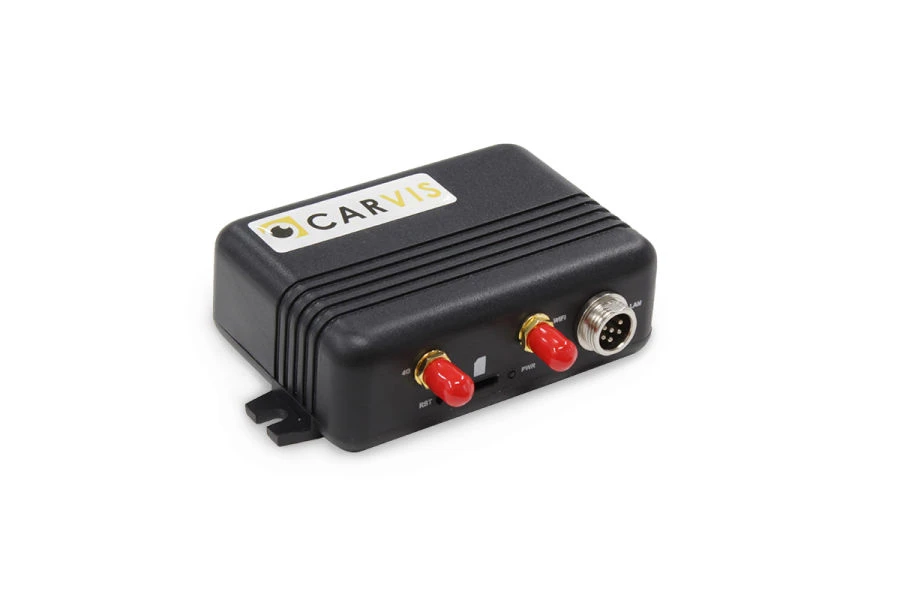

CARVIS MR-01GW Compact 3G/4G Wi-Fi Router for Mobile Connectivity
Manufacturer:
UNITECH LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Router CARVIS - router compact size with support for mobile communications standards 3G and 4G, as well as wireless network Wi-Fi. One of the router's features is a 6-pin aviation connector with Passive Power over Ethernet (PoE), which allows both power and data to be transmitted through a single cable, providing an efficient and convenient solution for deploying and maintaining network infrastructure. The second feature is the ability to use the device as an access point to connect other devices or in client mode to connect to an existing network.
Specifications
Wi-Fi Standards
IEEE 802.11 b/g/n
Wi-Fi operation modes
Access point (AP), client mode (STA)
Wi-Fi frequency range, GHz
2.4
Mobile network ranges
4G LTE-FDD: B1/B2/B3/B5/B7/B8/B20 4G LTE-TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900
Supported network services
NTP, DNS
Supported network protocols
ARP, IPv4, ICMP
Support VPN
Availability (L2TP, PPPTP)
Port penetration
availability
Presence/setup of DHCP server
availability
Reset button
1 pcs
Number of supported WiFi antennas
1 pcs
Number of supported 4G antennas
1 pcs
4G and Wi-Fi antenna connector
SMA
LAN port speed, Mbps
10/100
LAN Connector
Aircraft interface (6-pin)
SIM card size
Nano
Number of SIM slots
1 pcs
Maximum energy consumption, mA
120
Supply voltage, V
DC 12+/-3
Completeness
GSM antenna, Wi-Fi antenna, cable 6pin (mum) - 6pin (dad), 0,2m, adapter 6pin (dad) - RJ45 (mum)+1 power, 0,2m
Dimensions, mm
106,9*73*31,6
Housing material
Plastic
Operating temperature
-30'C...+70'C
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
