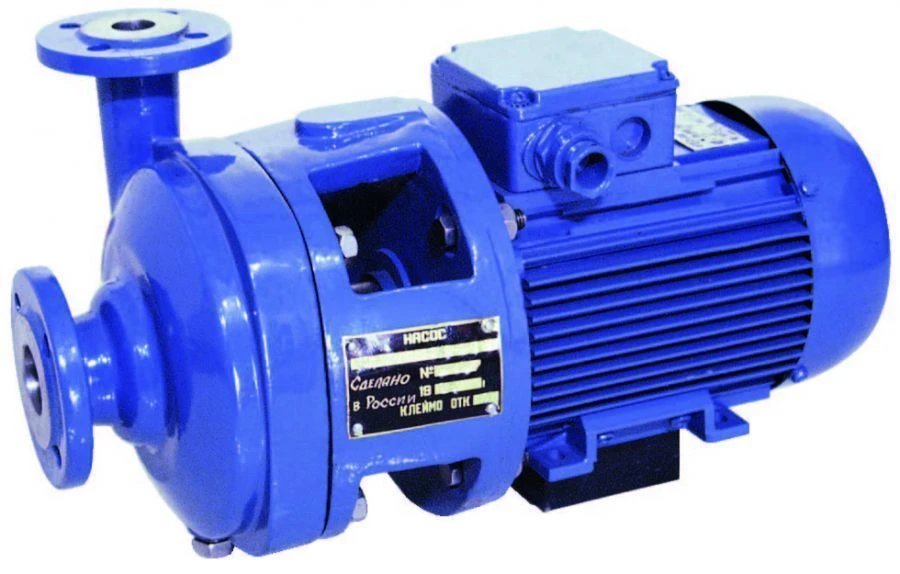

Centrifugal Monoblock Pump for Chemical Liquids - XM Type Application

Electric pumps "??" - centrifugal, horizontal, monoblock, single-stage - are designed for pumping chemically active and neutral liquids with density not exceeding 1500 kg/m3, containing solid inclusions up to 0,2 mm in size, the volume concentration of which does not exceed 0,1%. The kinematic viscosity is not more than 30x10-6 m2/s. Pressure at the inlet of the electric pump is not more than 0,35 MPa (3,5 kgf/cm2). Temperature of pumped liquid from 233 to 393 K (from -40 to +120 C).
