Centrifugal Pump D2500-62 for Efficient Water and Liquid Transfer

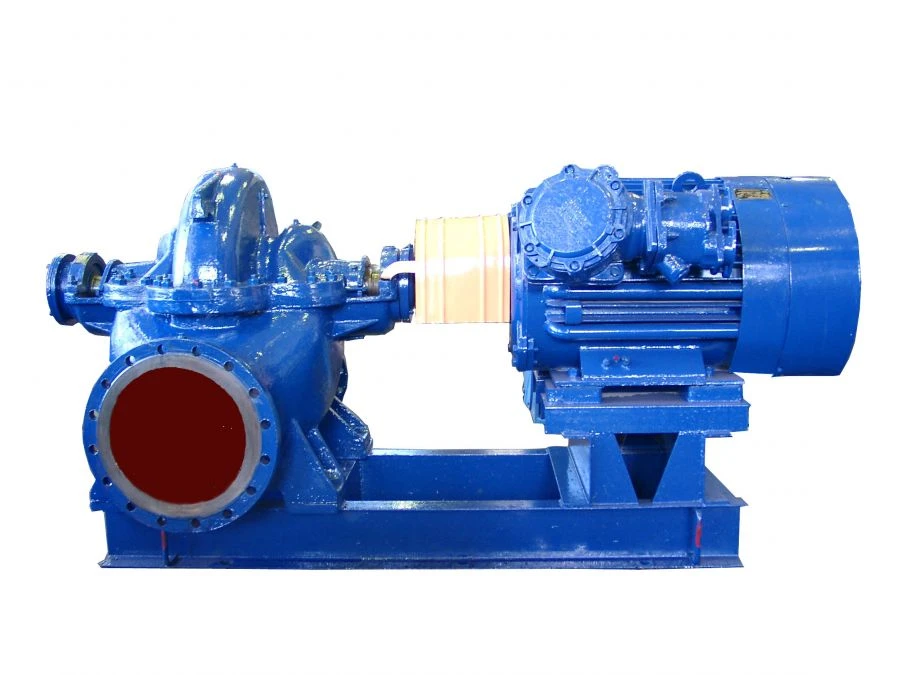

D2500-62 type centrifugal double-entry pumps and electric pump units on their basis are designed for pumping water and liquids with viscosity and chemical activity similar to water, with temperature up to 85 0C, containing solid inclusions by mass not more than 0,05%, size not more than 0,2 mm and microhardness not more than 6,5 GPa (650 kgf/mm2). D type pump is a centrifugal horizontal single-stage volute type pump with double-entry impeller and gland type end seals. The principle of operation of the pump is to convert the mechanical energy of the drive from an external source (motor) into hydraulic energy of the liquid flow. The electric pump unit consists of a pump and a motor, whose shafts are connected by means of an elastic sleeve-finger coupling closed by a guard. The pump casing is cast iron with semi-spiral inlet and spiral outlet, with a horizontal split along the rotor axis. Inlet and pressure connections of us...
