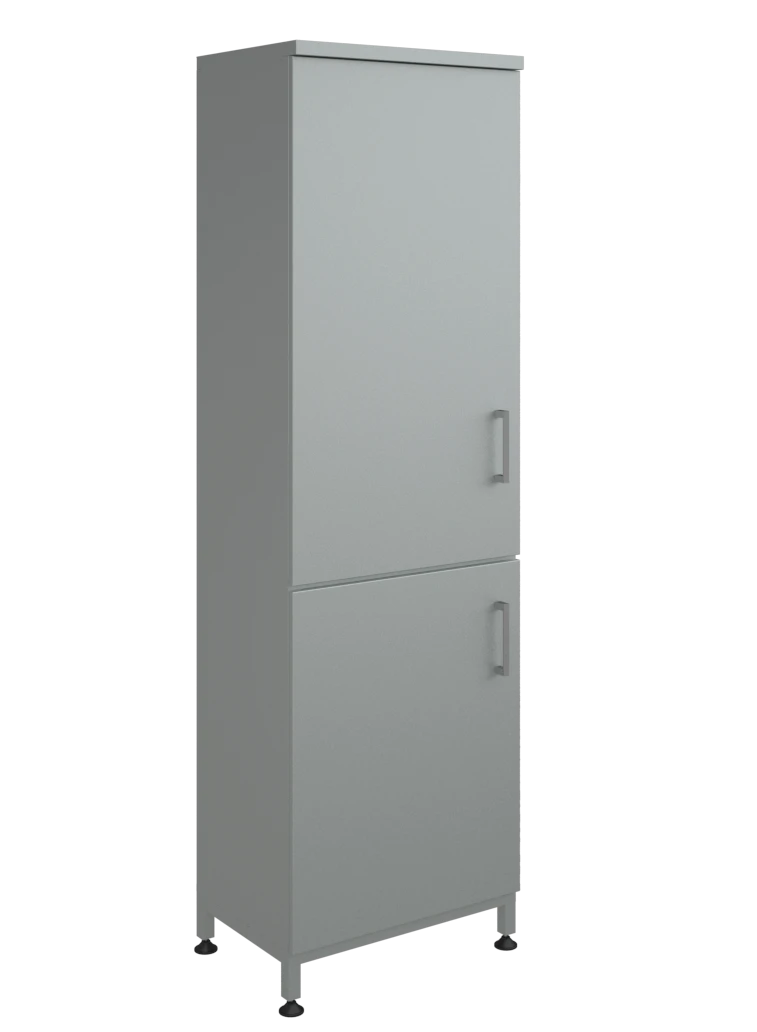

Chemical Reagent Storage Cabinet 600x400x1950mm for Safe Chemical Storage

Size 600x400x1950mm.Made of 30x30x1,5mm pipe and 1,0mm sheet metal. The cabinet consists of: roof, two sides, two rear walls, two doors, a central shelf, three hinged shelves, bottom and frame.Roof 602x402x20mm. It is made in the form of a box.

In the centre of the roof is made a hole with a diameter of 105mm for the installation of a flange under the hood. Dimensions of the bottom door 765x60mm. The doors are made of cold-rolled sheet 1.0mm.

Each door consists of two boxes, which are inserted into each other and welded. The doors are made in the form of a sandwich panel. The doors are fitted with railing handles with an inter-centre distance of 320mm.

The shelf is manufactured using complex profile bending. All four sides are bent to increase rigidity. Frame size: 598x378x88mm.

It is made of cold-rolled profile pipe with cross section 30x30x1,5 mm. The frame is welded without visible weld seams. There are 9 through holes in the frame.
