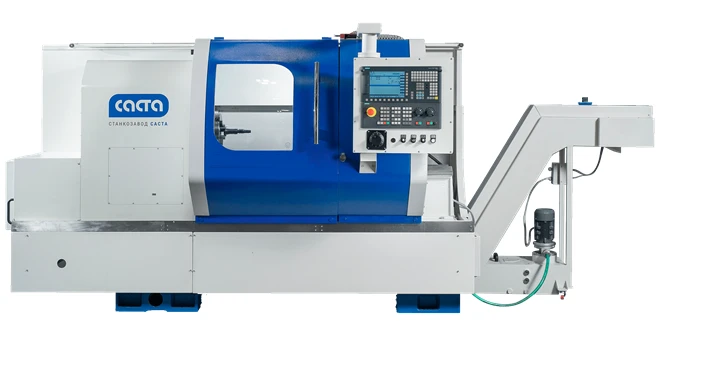

CNC Lathe Machine Model CA700C10F3 for Precision Machining Applications

CNC Metal Lathes

Manufacturer:SASTA PJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

CNC lathe model CA700C40F3 CNC lathe model CA800C10F3 CNC lathe model CA800C20F3

Description

- Stank CA700C10F3 is designed for turning in chuck and centres of parts with straight, stepped and curved profile.
The range of spindle speed control allows machining of both conventional ferrous and non-ferrous metals and alloy steels.
The rigid solid cast iron bed, artificially aged to relieve internal stresses, guarantees long-lasting stability of the machine's geometric accuracy.
Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability.
The surfaces of the travelling units (carriage, tailstock) are scaled and coated with a special anti-friction coating for minimum wear and friction-free travelling.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Width

2080 mm

Machine weight, not more

4500 kg

Length

3393 mm

Height

1906 mm

Largest diameter of the workpiece to be machined above the slide

430 mm

X-axis travel (transverse movement of the slide)

425 mm

Z-axis travel (longitudinal movement of the slide)

900 mm

X-axis travel speed (lateral movement of the slide)

5 m/min

Maximum spindle speed

1600

Maximum torque

Fanuc: 1750/2187,5 Nm,Siemens: 2028/2535 Nm

Z-axis travel speed (longitudinal movement of the slide)

Width without remote control/ with remote control

2690 mm

Largest diameter of the workpiece to be mounted above the bed

700 mm

Speed control

Dual-range gearbox

Main engine power

Fanuc: 22/26 kWSiemens: 17/20.4 kW

Spindle end

?11

Chuck diameter

400 (500, 630* optional)

Chuck type

Mechanical (hydraulic* optional)

Diameter of the spindle bore for the bar

140 mm

Attachment of the turret tool

VDI40

Number of tool slots

8 (4* optional)

Moving the tailstock quill

240 mm

Diameter of tailstock quill

120 mm

Tailstock quill taper

Morse 6

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
