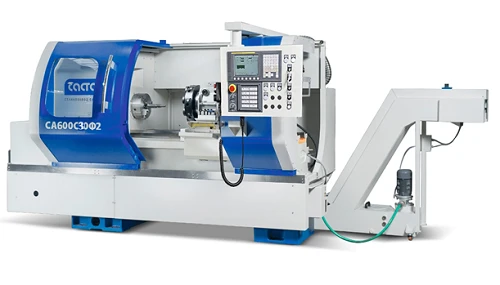

CNC Lathe Machine with Control System SA600C30F2 for Precision Machining

CNC Metal Lathes

Manufacturer:SASTA PJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

- Lathes with OSU (Operative Control System) - this is a new generation of equipment, which replaced the classic universal machine tools with digital indication device (DCI).
OSU machines offer machining capabilities comparable to those of numerically controlled machine tools.
The latest Fanuc based operational control system provides the functionality of a CNC system while maintaining operator ease of operation and manual override capability.
Rigid design: solid cast iron bed, wide prismatic sliding guides, five precision angular contact bearings in the spindle unit, servo feed drives and ball screws instead of mechanical kinematic links - all this guarantees accuracy and reliability of the machine.
Equipping the machine with a turret (up to 8 tools) with vertical or horizontal axis of rotation with automatic tool change (option) instead of a manual toolholder significantly expands the technological possibilities of the machine.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

5377 mm

Height

2170 mm

Weight

3700 kg

Width (without remote control)

1616 mm

Width (with remote control)

2220 mm

The largest diameter of the workpiece, to be mounted above the bed

560 mm

The largest diameter of the workpiece, to be machined above the slide

360 mm

Movement in the X axis (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

2446 mm

Maximum speed spindle speed

2800

Maximum spindle torque

783/978

Main engine power

15/18.5 kW

Spindle speed control

Stepless, 2 ranges

Diameter of the spindle bore for the bar

102 mm

Spindle end

?11

Attachment of the turret tool

VDI40

Number of tool slots

8 (4* optional)

Number of instruments

4 pcs

Section of toolholder

25x25 mm

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Tailstock quill taper

Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
