CNC Machining Center STCP 220KS (RFP-6S) for Precision Metal Cutting
Manufacturer:
ISZ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

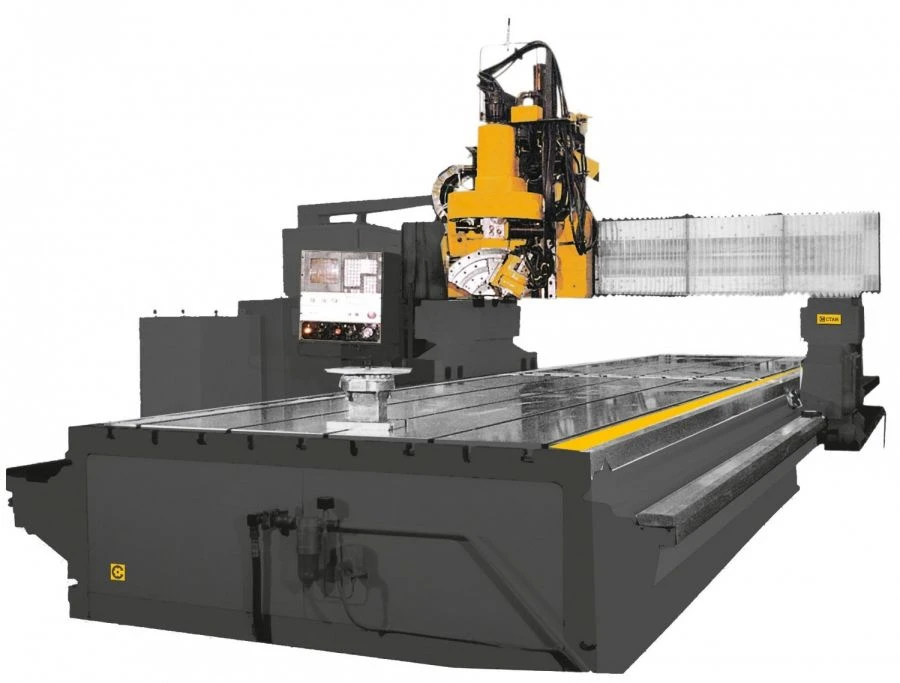

The machining centre STCP 220KS (RFP-6S) is designed for cutting by milling of non-ferrous metal sheet blanks up to 15 mm thick with any curved outer and inner contour, for milling of thin-walled panels and pressed profiles, as well as for drilling of holes up to 8 mm in large-sized blanks.
Modification with a fixed table 2200x6000 mm, movable portal, on the crossbar of which moves a transverse carriage with a base, carrying a vertical carriage with an electric spindle, with rails.
Modification with a fixed table 2200x6000 mm, movable portal, on the crossbar of which moves a transverse carriage with a base, carrying a vertical carriage with an electric spindle, with rails.
Specifications
Type of product according to PP RF 616
5-axis portal machining centers
Machine type
Обрабатывающий центр
Dimensions of the table working surface
2200x6000 mm
Tool cone
HSK-A63
Maximum spindle speed
24000
Rated torque of el. spindle (S1/S6)
20/26
Maximum programmable movements, X axis
6500 mm
Maximum programmable movements, Y axis
2260 mm
Maximum programmable movements, Z axis
1200 mm
Fast travel speeds, X axis
60000 mm/min
Fast travel speeds, Y axis
30000 mm/min
Fast travel speeds, Z axis
30000 mm/min
Number of tool bits in the magazine
B1/B8 2100/900 MHz pcs
Accuracy class according to GOST 30027-93
?
Control system
CNC
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
