Available for Import

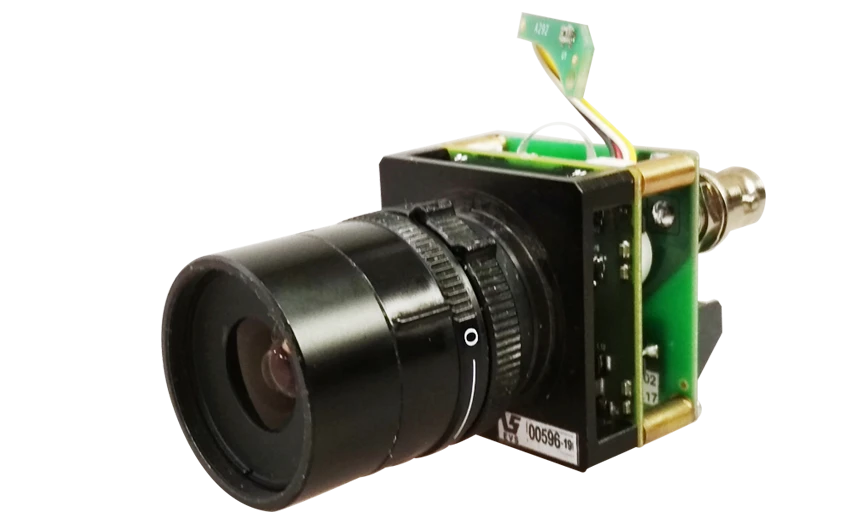

Color Surveillance Camera VEI-141-AHD for Security Applications

Television Video Cameras

Manufacturer:EVS LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed to work as part of security television systems. Operates indoors with air temperature from +5 ° C to +50 ° C, relative humidity up to 90%, atmospheric pressure from 720 to 780 mm Hg. The camera has an analogue video output and can be connected to a monitor, TV, DVR or a device for inputting analogue images into a computer.

Specifications

Photodetector format

CMOS, 6.09 mm (1/3") diagonal, colour, 1280 x 1024 pixels

Output signal format

AHD - 1,0 / CVBS (PAL/NTSC)

Resolution

At least 800 TV lines in AHD mode, at least 550 TV lines in CVBS mode

Field of view angle

Determined by the lens used.

Sensitivity (minimum illumination)

Not worse than 0.01 lux for colour image, not worse than 0.005 lux for black and white image.

Maximum illumination of the observed object

Not less than 100,000 lux with F1,2 lens.

IR filter

Mechanical or controlled by light sensor or video signal.

Consumption current

Not more than 90 mA (without lens) when the camera is powered from +12V voltage source.

External dimensions

42 x 42 x 47 mm

Weight

Not more than 50 grams (without lens)

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, RussiaCIF Available to major ports worldwideEXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C)Wire Transfer (T/T)Escrow Services
