KО-829С1-03 Combined Road Machine - All-Season Road Maintenance

Combined Road Machine KО-829С1-03 for Year-Round Urban and Highway Maintenance

Manufacturer:KOMMAШ OJSC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

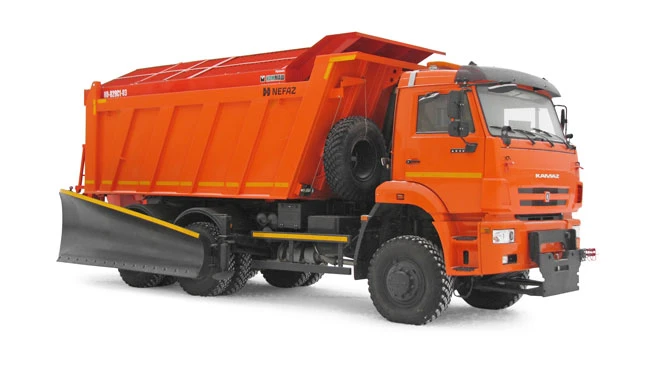

Combined road machine (CRM) KO-829C1-03 is used for all-season maintenance of urban and trunk roads. In winter the machine is used with sand-spreading equipment for sprinkling inert materials or anti-icing agents on the surface of pavements and roads, as well as for cleaning the roadbed from freshly fallen snow with plough-brushing equipment. In summer the machine is used with water-washing equipment for washing and watering of road surfaces, stops, washing of the shoulder strip and watering of green areas. The combined road machine is a dump truck chassis on which a superstructure is installed: water-washing equipment in two versions (low-pressure, high-pressure) or sand-spreading equipment. For effective performance of functions the combined machine can be equipped with additional options: (front rotary mouldboard (hydraulic), city mouldboard, high-speed mouldboard, grader mouldboard (perf).

Specifications

Type of product according to PP RF 616
Vehicles for public utilities and road maintenance
Base chassis type
kamaz-6522-53
Engine type
diesel
Width of the working area of the waterwashing equipment
2.5...20 m
Type
Vehicles for public utilities and road maintenance
Attachments (optional extras)
replaceable
Maximum noise level at the operator's workplace
80 db
Technically permissible maximum weight of the machine
33100 kg
Sprinkle density for sand, gravel, g/m2
500
Working area width of plow equipment with urban moldboard
2.5...3 m
Width of working area of the side blade equipment
2.12...2.35 m
Width of working area of medium brush brushing equipment
2.5 m
Width of working area of the high-speed blade equipment
3 m
Width of the working area of the spreading equipment
B1/B8 2100/900 MHz m
Width of working area of grader blade equipment
2.5...3.1 m
Weight of brush front (rear) special equipment
500 kg
Weight of special equipment of the brushing medium
250 kg
Side blade special equipment weight
700 kg
Weight of grader special equipment
400 kg
Speed blade special equipment weight
840...1000 kg
Weight of special equipment of the city blade
420...565 kg
Weight of special spreading equipment
2800 kg
Weight of sand to be loaded into the spreader
14260 kg
Spreader body capacity (bulk)
10
Operating water pressure for high-pressure washing
2 MPa
Operating water pressure for low pressure washer operation
0.4 MPa
Working area width of special equipment for spreading liquid reagents
3.5...7 m
Working area width of brush cleaning equipment for washing barrier fences
B38/B40/B41 m
Weight of special brushing equipment for washing barrier fences
450 kg
Weight of special equipment of the high pressure rail
300 kg
Weight of special equipment for spreading liquid reagents
2650 kg
Weight of the special equipment of the irrigation washing machine
2900 kg
Capacity of liquid reagent tanks
10
Machine type
Combined road machine

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
