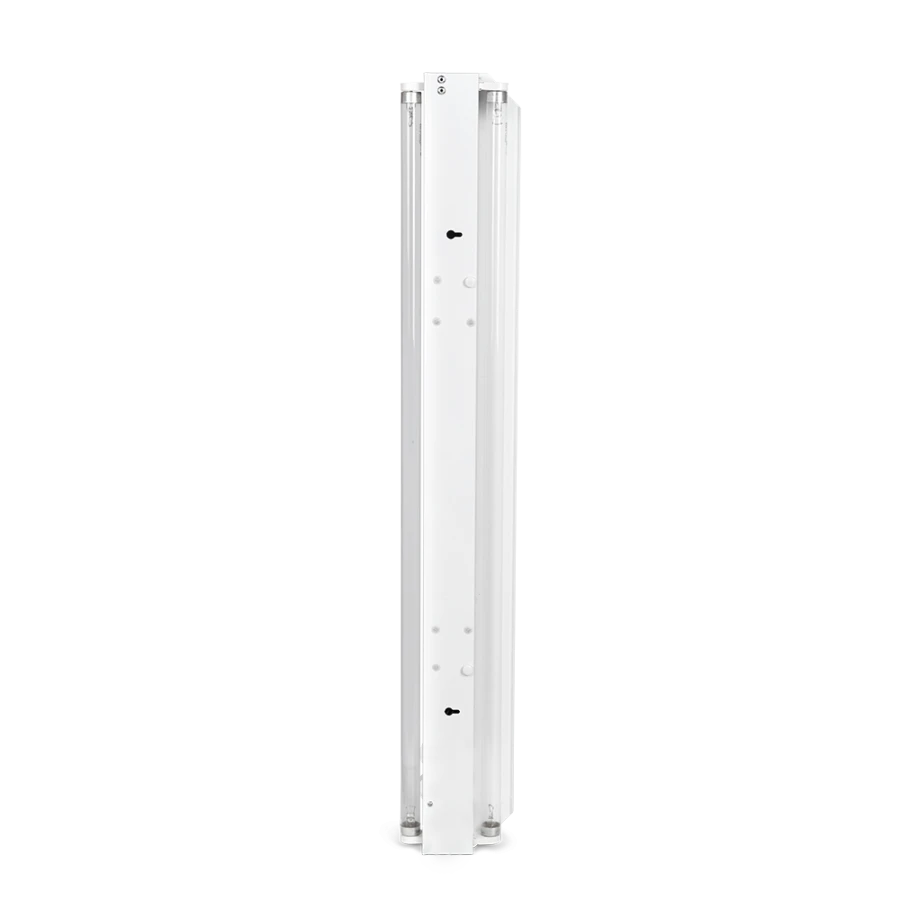

Combined Type UV Disinfection Device "ARMED": 230 for Effective Bacteria and Virus Control

Medical Equipment Supplies

Manufacturer: MT NPC ARMED LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The illuminator is designed for indoor use to kill bacteria and viruses in the air and/or on surfaces by means of ultraviolet radiation. The principle of action is based on the application of UV radiation, the source of which are bactericidal lamps installed in the irradiator. More than 60 per cent of the radiation is emitted at a wavelength of 253.7 nm, which ensures maximum action.

Irradiators are used in the premises of medical and preventive institutions (LPI) in the absence of people in the room at the stage of preparation of the room for work as the final link in the complex of sanitary and hygienic measures to reduce microbial contamination of the air and surfaces in accordance with the Guidelines R 3.5.1904-04 and in accordance with SP 2.1.3678.

Specifications

Type of product according to PP RF 616

Medical devices, including surgical, other, not included in other groupings

Length

935 mm

Width

55 mm

Height

140 mm

Performance

110

Irradiance from ultraviolet radiation source, W/m2, 10%

9,9

Bactericidal yield, not less

0,30

Bactericidal flux utilization factor of lamps

0,35

Power factor, not less than

0,93

Corrected sound power level, dBA, not more than

SBVVBG

Lamp type

Low pressure UV bactericidal lamps

Lamp shape

Straightforward

Number of lamps

2 pcs

Lamp base type

G13

Lamp wavelength, nm

253,7

Electrical power of a lamp

30 W

Decline of bactericidal flux after 5000 (5%) hours

15%

Bactericidal flux of the lamp, not less than

11.2 W

Total bactericidal flux of the lamp, not less than

22.4 W

Lamp life, not less than

8000

Power consumption

75 W

Mains voltage

230 V

Current frequency

SBVVBG

Protection class against electric shock

Working part

Without working part

Classification by degree of protection against penetration of water and solid particles

IP20

Maximum permissible operating mode establishment time calculated from the moment the power is switched on

Net weight of irradiator (with lamps)

1.8 kg

Irradiator gross weight, not more

2.3 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
