Communication Device PU-05 for Efficient Customer Interaction in Metro Ticket Offices

The intercom device PU-05 is designed to work in underground ticket offices, providing negotiations between the client and the cashier. In terms of resistance to climatic factors during operation PU-05 corresponds to classification group K1 according to OST 32.146-2000. According to the degree of protection of the shell PU-05 units are made in enclosures of IP 41 group according to GOST 14254-96.

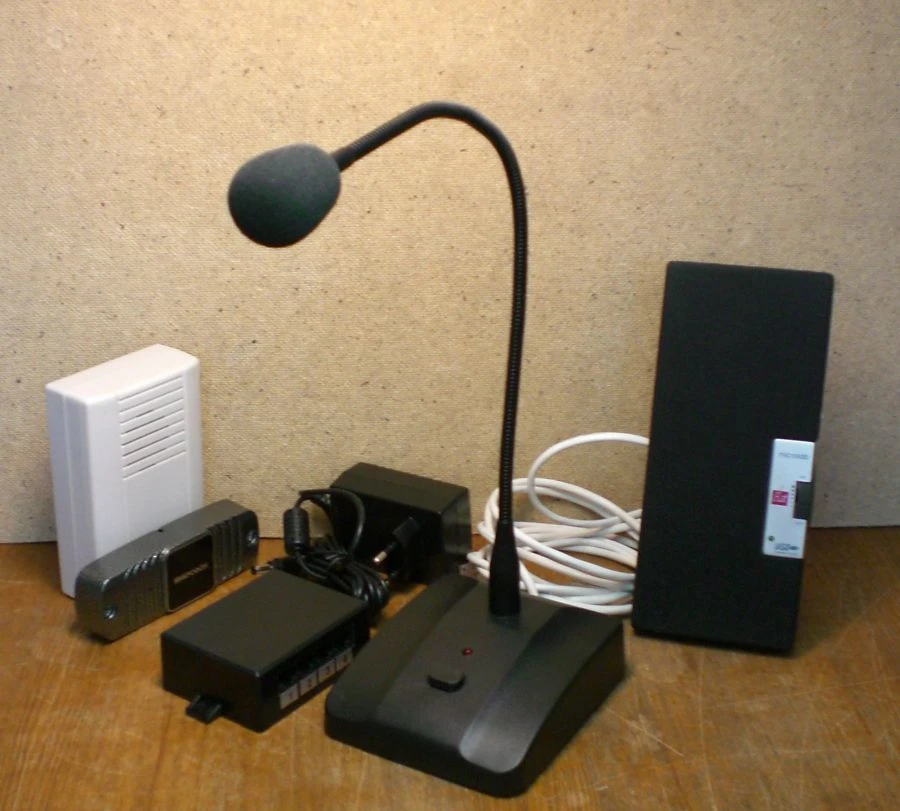

Technical characteristics: Maximum power consumption from the network ~220 V, 50 Hz, W, not more than 10; Maximum output power, W. 0,5; Communication line between the set of the cashier and the set of the client - 4-wire line, length, m, not more than 10; Distance from the client to the microphone in the hall, cm, not more than 60; Weight of one product, kg, not more than 3,0. Supply kit: Each PU-05 includes:Block of the loudspeaker of the cashier, pcs.

1; Block microphone cashier, pcs. 1; Block microphone client, pcs. 1; Loudspeaker unit of the client, pcs.

1; Switching unit, pcs. 1; Power adapter unit, pcs. 1; Cable, pcs.

2.
