Compact Air-Insulated Busbar for AC Distribution 250-800A with IP54 Protection

Electrical Circuit Devices

Manufacturer: SOEMI OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

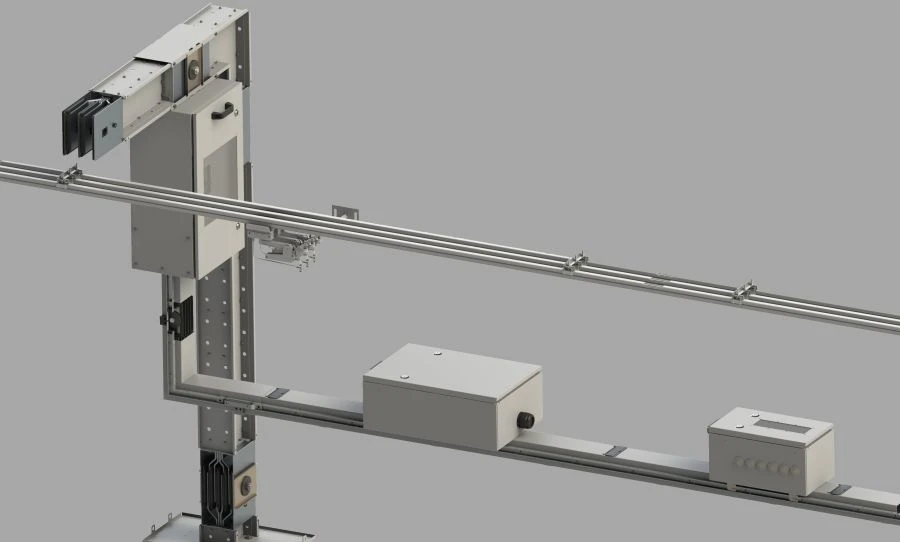

Compact package of aluminium busbars with air insulation in a steel casing. The busbar is manufactured with earthing system TN-S or TN-C-S (on request) according to GOST R 50571.2 (IEC 364-3), and branch circuits for supplying current collectors from 16 to 400A. It is an optimal option for creating power supply lines at virtually any site.

Its design allows installation in horizontal and vertical positions, with any variant of busbar arrangement. Distribution busbar SHMA 5 SOEMI is designed to work in facilities where there is a need for high density of power distribution between floors and on floors, as well as high requirements for electrical safety and operation of buildings, in electrical networks of three-phase current frequency of 50 and 60 Hz, at a voltage of up to 1000V. In terms of electrical characteristics, functional purpose and technical performance busbar SOEMI is not inferior to world analogues.

Specifications

Rated current, at ambient temperature + 45°C

250...800 A

Rated voltage, max.

1000 V

Frequency

50...60

Protection degree of busbar line assembled in line according to GOST 14254

IP54

Installed service life with possible replacement of switching devices, not less than

20 year

Installed failure-free operating time, not less than

13500

Tire material

aluminum alloy AD31T

Seismic resistance

7-9 points

Fire resistance

180

Grounding system

TN-C or TN-C-S*

Junction boxes

16...400 A

Branch pitch

250 min

Length of straight section

3, 2, 1 ?

Cross section of the phase conductor

600 mm²

Climatic version

Number of conductors

5 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
