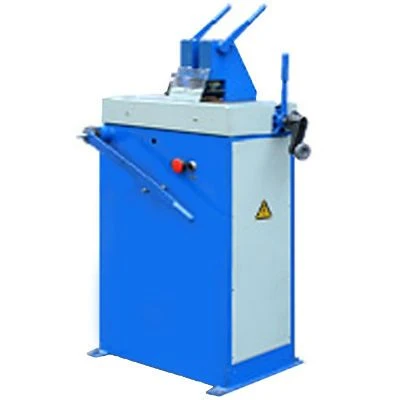

Contact Welding Machine MSS-1902 UHL4 for Industrial Applications

Electric Soldering & Welding Machines

Manufacturer:UZSNGU "ISKRA" LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Machines of contact welding MSS - 1902 are used in industry and production enterprises for butt welding. They have excellent performance, high level of reliability, convenient setup and operation. It is designed for electric resistance resistance butt welding of low carbon steel, copper and aluminium wires.

The machine is AC, stationary, with a cutting device, spring precipitation drive, manual spring clamping and cocking drives, air cooling, there is an annealing mode after welding, 8 stages of regulation. The main field of application of the machine is drawing production in cable and steel wire-cable industries. The machine is designed for operation in the following conditions: ambient temperature from +1°C to + 35°C, ambient humidity up to 80% at 25°C, atmospheric pressure from 84.0 kPs (630 mmHg) to 106.7 kPa (800 mmHg).

Category 4 provides for operation of the machine in closed heated (cooled) and...

Specifications

Welding wire diameters, steel

3...12 mm

Welding wire diameters, copper

4...10 mm

Welding wire diameters, aluminum

5...12 mm

Rated voltage of supply network at frequency of 50 Hz

380 V

Variation range of welding transformer secondary voltage

2-3 V

Settling force, settling spring 1

0,06-1,0

Settling force, settling spring 2

0,03-0,4

Power factor at short circuit at nominal stage

0,7

Highest short-circuit power consumption, max.

Power at 50% PV

The largest value of precipitation, not less than

15 mm

Largest diameter of cut copper wire

10 mm

Displacement of axes of welded parts with diameter of 7-9 mm, not more than

1 mm

Average service life, at least

10 year

Average life before overhaul

10000

Weight, not more

175 kg

Number of secondary voltage regulation stages

Highest clamping force (at the highest force on the handle 0.35 kN), not less than

Nominal stage

Tangent of the angle between the longitudinal axes of the parts to be welded at a settling force of 0.63 kN, not exceeding 0.63

0.012

Productivity at welding of minimum cross-sections

200

Resistance to constant current of the secondary circuit, not more

Highest secondary current, ±10%

Rated continuous secondary current

1.4

Long-term productivity (including hail removal and downtime due to welding faults) 1525075:Long-term productivity (including hai

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
