Continuous Insulation Resistance Monitoring System for DC Networks - SKI SKIPETR and Its Applications
Manufacturer:
ELECOMSERVICE LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

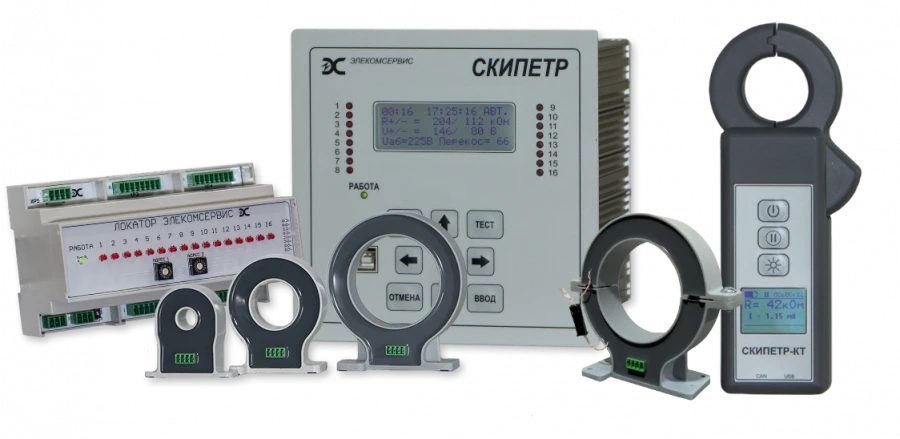

SKI SKIPETR is designed for continuous monitoring of DC network insulation resistance and automatic detection of connections with broken insulation without disconnecting consumers.
It is optionally equipped with current clamps SKIPETR-KT for manual search of earth fault location.
It is possible to use detachable current sensors of feeder connections in the reconstruction of existing facilities.
It is optionally equipped with current clamps SKIPETR-KT for manual search of earth fault location.
It is possible to use detachable current sensors of feeder connections in the reconstruction of existing facilities.
Specifications
Rated voltage of the monitored DC network
110 V
Permissible DC mains voltage range
87...300 V
Range of readings when monitoring the insulation resistance of the mains poles
0 - 999 kOhm
Insulation resistance reduction setpoint adjustment range
1 - 999 kOhm
Reading range when searching for insulation faults
0 - 999 kOhm
Maximum network capacitance with respect to ground
300 µF
Automatic detection of feeder with damaged insulation
Armoured glass
Possibility of manual short-circuit search with specialised pincers
Armoured glass
Monitoring of bays insulation resistance during manual search
Armoured glass
Possibility of application of detachable current sensors of connections
Armoured glass
Co-operation with typical T-type insulation control system or its analogue
Armoured glass
Designation
SCEPTRE
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
