Available for Import

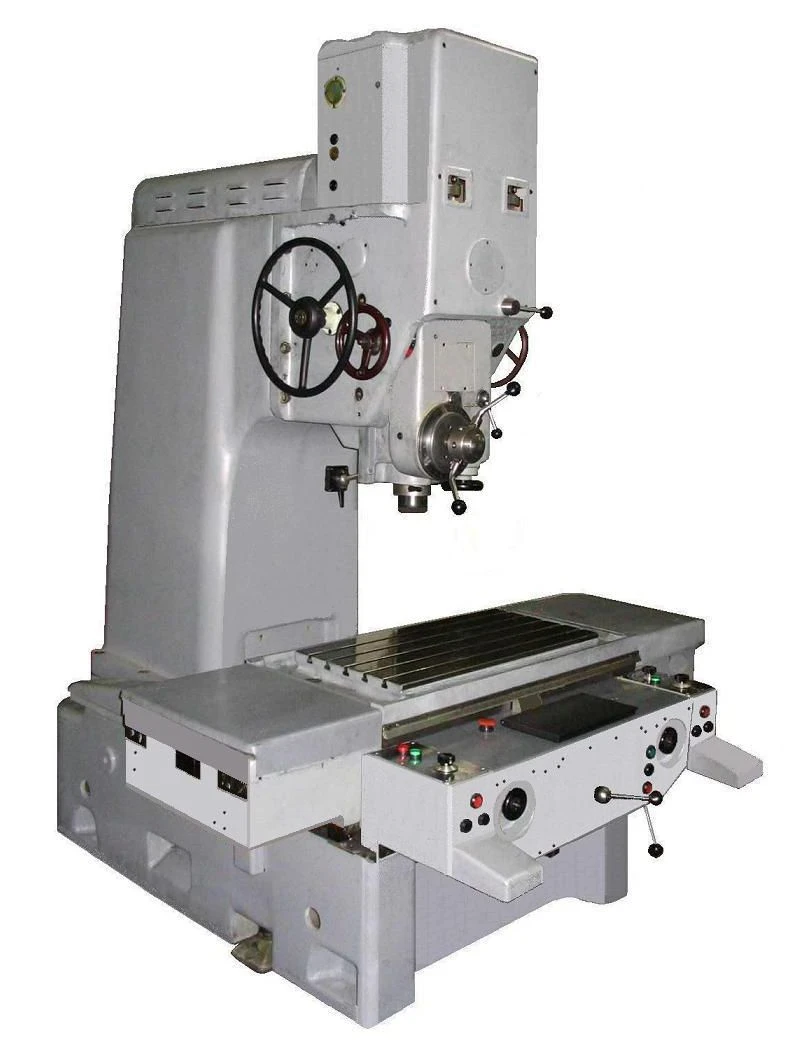

Coordinate Drilling Machine 2E440AF10 for High Precision Applications
Manufacturer:
STAN-Samara CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Coordinate boring machine 2E440AF10
Specifications
Type of product according to PP RF 616
Horizontal boring machines (universal, CNC, CNC)
Length
2440 mm
Width
2195 mm
Height
2430 mm
Power consumption
4 kW
Type
Coordinate boring machine
Weight
3500 kg
Accelerated table (skid) feed
1600
Table (skid) feeding working
20-315
Feeding of the spindle sleeve
0.03-0.16
Spindle speed
50-2000
Inner spindle taper
40 (7:24)
Machine accuracy class
?
Type of equipment
Coordinate boring machines
Geometric shape accuracy of the bore to be bored
0.004
Coordinate setting accuracy
0.005
Machine weight (without control cabinet and accessories)
3500
Machine dimensions, height
2430
Machine dimensions, width
2195
Machine dimensions, length
2440
Spindle drive motor power
4
Largest boring diameter
250
Largest drilling diameter
25
Maximum travel of the skids
400
Maximum table movement
630
Dimensions of the table working surface, width
400
Dimensions of the table working surface, length
710
Accuracy of distance between axes of holes bored on the machine tool
0.008
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
