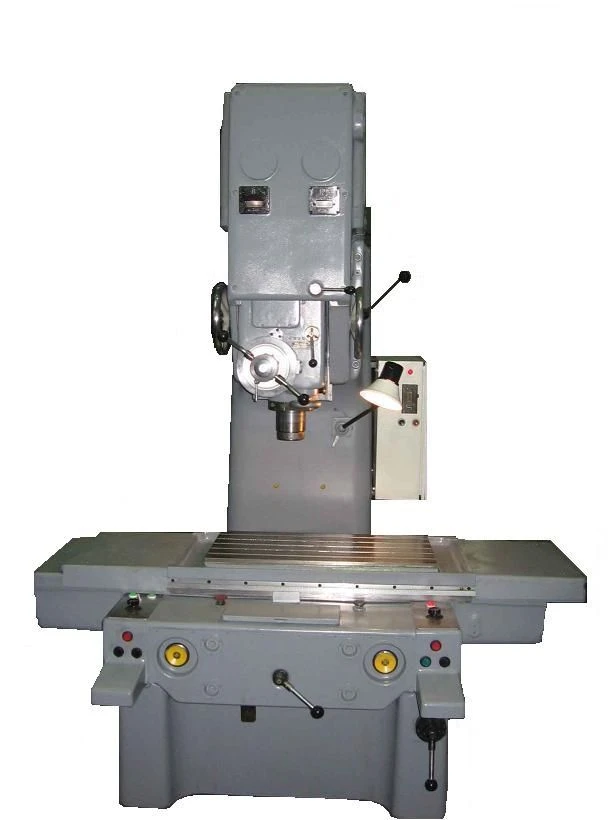

Coordinate Drilling Machine 2V440AF10 for Accurate Drilling and Milling
Manufacturer:
STAN-Samara CJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Coordinate boring machine 2?440??10
Specifications
Type of product according to PP RF 616
Horizontal boring machines (universal, CNC, CNC)
Length
2520 mm
Width
2195 mm
Height
2350 mm
Power consumption
4 kW
Weight
3700 kg
Machine accuracy class
?
Type of equipment
Coordinate boring machines
Accelerated table (skid) feed
800
Table (skid) feeding working
20-315
Feeding of the spindle sleeve
0.03-0.16
Spindle speed
50-2000
Inner spindle taper
Special 5°
Coordinate setting accuracy
0.005
Machine weight (without control cabinet and accessories)
3700
Machine dimensions, height
2350
Machine dimensions, width
2195
Machine dimensions, length
2520
Spindle drive motor power
4
Largest boring diameter
250
Largest drilling diameter
25
Maximum travel of the skids
400
Maximum table movement
710
Dimensions of the table working surface, width
400
Dimensions of the table working surface, length
800
Geometric shape accuracy of the bore to be bored
0.004
Accuracy of distance between axes of holes bored on the machine tool
0.008
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
