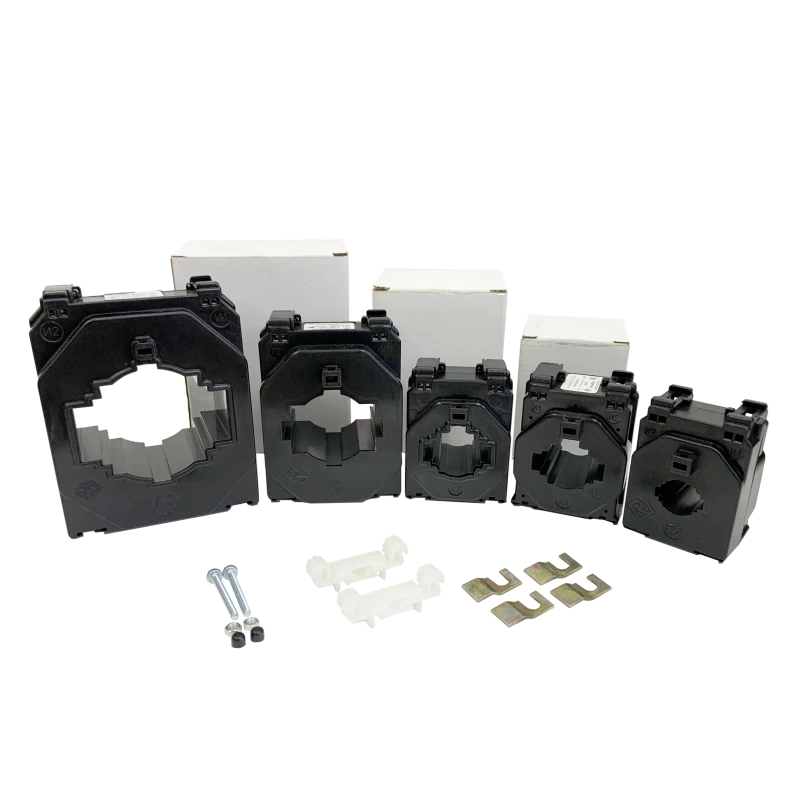

Available for ImportCurrent Transformers TSHPTC-0.66 for Accurate Measurement and Control
Manufacturer:TRANSVIT OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
TShP-Ts-0,66 current transformers, nominal voltage 0,66 kV, are designed for transmission of measuring information signal to measurement, automation, protection, signalling and control devices in AC electrical installations with frequency 50 Hz.
Mounting variability: on a busbar; on a panel, on a DIN rail with a width of 35 mm using special brackets.
Average service life 30 years
Average MTBF 400 000 h
Mounting variability: on a busbar; on a panel, on a DIN rail with a width of 35 mm using special brackets.
Average service life 30 years
Average MTBF 400 000 h
Specifications
Type
Measuring transformers
Designation
TShP-TC-0,66 series
Rated primary voltage; V
660 V
Overall dimensions; mm
65x63,5x84 (constructional design: 6); 84,5x76x112,3 (constructional design: 8); 109x74,5x135 (constructional design: 10) mm
Average MTBF
400000
Average service life
30 year
Climatic version and placement category
?3
Rated secondary load, VA
1...40
Number of secondary windings
1
Accuracy class of secondary winding
0,2S; 0,2; 0,5S; 0,5; 1
Rated secondary current
5 A
Rated primary current
150...2000 A
Rated AC frequency
SBVVBG
Highest operating voltage
720 V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
