Cyclone Dust Collector (Discharger) CRK Modification CRK-450-2

Available for Import

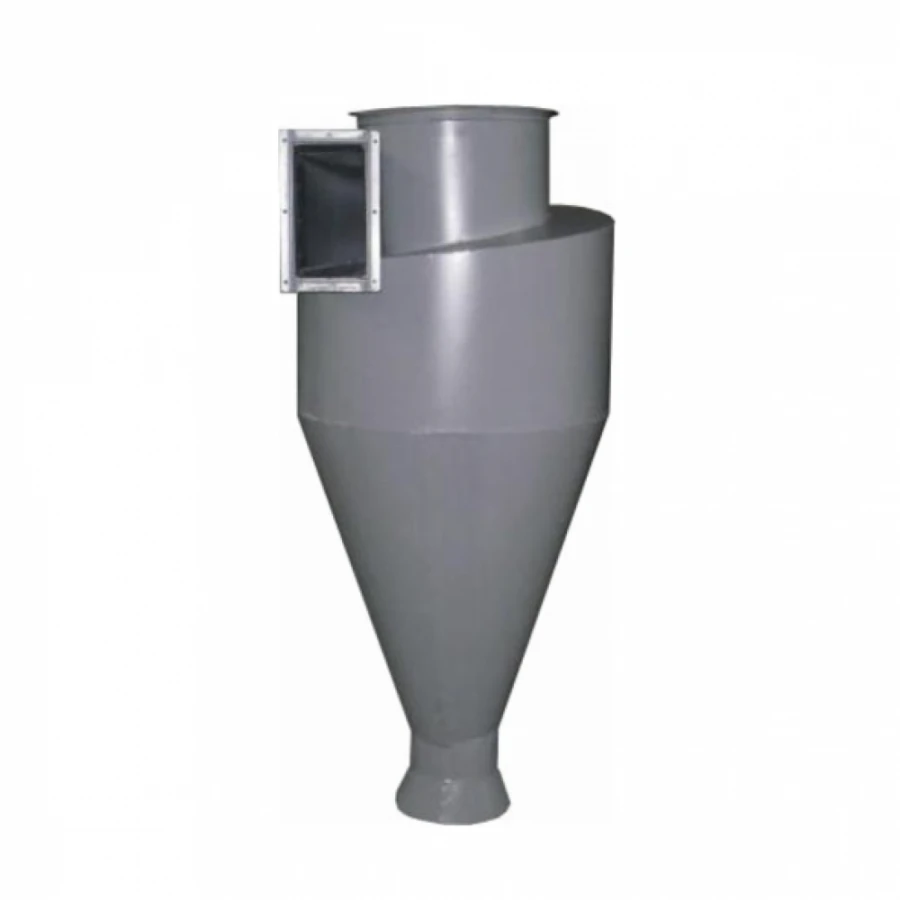

Cyclone Dust Collector (Discharger) CRK-450-2 for Air Cleaning and Dust Control

Air Filtration Systems

Manufacturer: PROMSTROYKOMPLEKT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Cyclone dust separator (unloader) of CRK type modification CRK-650-2 Cyclone dust separator (unloader) of CRK type modification CRK-350 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type modification CRK-300

Cyclone dust separator (unloader) of CRK type modification CRK-600 Cyclone dust separator (unloader) of CRK type modification CRK-300 Cyclone dust separator (unloader) of CRK type modification CRK-500-2 Cyclone dust separator (unloader) of CRK type modification CRK-550 Cyclone dust separator (unloader) of CRK type modification CRK-550-2 Cyclone dust separator (unloader) of CRK type modification CRK-500-2 Cyclone dust separator (unloader) of CRK type modification CRK-450-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-650-2 Cyclone dust separator (unloader) of CRK type modification CRK-550-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-450 Cyclone dust separator (unloader) of CRK type modification CRK-650-2 Cyclone dust separator (unloader) of CRK type modification CRK-650-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-400-2 Cyclone dust separator (unloader) of CRK type modification CRK-450-2 Cyclone dust separator (unloader) of CRK type modification CRK-600-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-450-2 Cyclone dust separator (unloader) of CRK type modification CRK-300 Cyclone dust separator (unloader) of CRK type modification CRK-300 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type modification CRK-700-2 Cyclone dust separator (unloader) of CRK type modification CRK-650-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type modification CRK-550-2 Cyclone dust separator (unloader) of CRK type modification CRK-500-2 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type, modification CRK-650. Cyclone dust separator (unloader) of CRK type modification CRK-350-2 Cyclone dust separator (unloader) of CRK type, modification CRK-750 Cyclone dust separator (unloader) of CRK type modification CRK-500-2 Cyclone dust separator (unloader) of CRK type modification CRK-300-2 Cyclone dust separator (unloader) of CRK type modification CRK-750-2 Cyclone dust separator (unloader) of CRK type modification CRK-550-2 Cyclone dust separator (unloader) of CRK type modification CRK-500-2 Cyclone dust separator (unloader) of CRK type modification CRK-450-2 Cyclone dust separator (unloader) of CRK type modification CRK-550-2 Cyclone dust separator (unloader) of CRK type modification CRK-300 Cyclone dust separator (unloader) of CRK type modification CRK-700 Cyclone dust separator (unloader) of CRK type modification CRK-450-2 Cyclone dust separator (unloader) of CRK type modification CRK-500 Cyclone dust separator (unloader) of CRK type modification CRK-300 Cyclone dust separator (unloader) of CRK type modification CRK-500-2

Description

Cyclones unloaders type ??? are used as a device for air purification and capture of medium-sized dust in pneumatic conveying systems and in aspiration installations of grain cleaning departments of mills. The name of cyclone ???

is deciphered: ?? - cyclone discharger,? - short.

Scope of application of cyclones CRk: The specified type of cyclones is recommended for application at grain processing enterprises, woodworking enterprises, etc. It should be noted that cyclones CR are not designed for air cleaning from sticky and fibrous dusts. Cyclones of the CRk type have the ratio of the height of the cylindrical part of the cyclone to the conical part equal to approximately one.

The cyclone has a tangential swirler. The cyclone design includes a screw in which a guide vane rotates, which fulfils the role of a regulating mechanism. The vane is fixed at a certain angle by means of a handle.

This design of the equipment prevents particles from being carried away, and the angle of the flow velocity inlet to the mechanism body is adjusted depending on the density and characteristics of the dust in the clean air. Directly, with the help of a vane it is possible to clean the inner part of the housing from the adhered dust. Cyclones ???

are manufactured both left and right versions.

Specifications

Capture efficiency of coarse grain dust, %

95...98 %

Diameter

450 mm

Average service life, at least

6 year

Overall dimensions

502x479x1000
