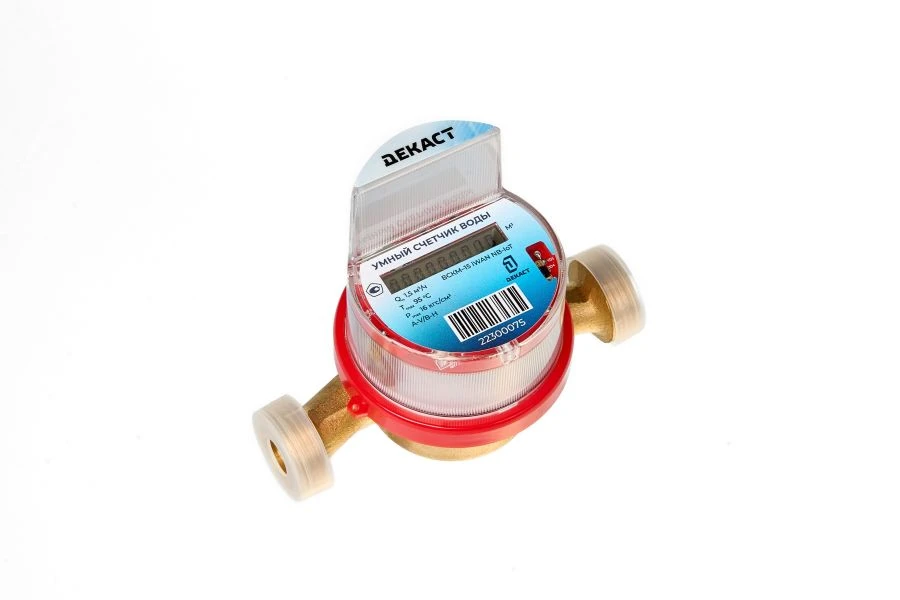

Decast VSKM-15 Water Meter for Cold and Hot Water with NB-IoT 110 mm

Available for Import

Decast VSKM-15 Water Meter for Accurate Measurement of Cold and Hot Water

Water and Liquid Meters

Manufacturer:DEKAST LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Counters are designed to measure the volume of drinking water according to SanPiN 2.1.4.1074-01 in residential buildings, as well as in industrial buildings during accounting operations. Wireless data transfer protocol NB-IoT. Mounting length 110 mm.

The principle of operation of the meter is to measure the number of revolutions of the sensitive element (impeller) rotating under the action of the flow of flowing water. The number of revolutions of the sensitive element is proportional to the volume of water flowing through the meter. Structurally, the meters consist of a casing (flowing part) and counting mechanism (electronic unit with liquid crystal display).

The verification procedure is MP 208-001-2023.

Specifications

Guaranteed shelf life (from the production date)

B1/B8 2100/900 MHz

Warranty service period

Inspection interval

6 year

Tolerance limits of relative error in the range Qt (inclusive) - Qmax, %

-2

Tolerance limits of relative error in the range Qmin-Qt, %

-5

Discreteness of the control scale of the indicator device

0.0001

Capacity of the counting mechanism

99999.9999

Mounting length

110 mm

Water temperature range

5...95 °C

Maximum water pressure

1.6 MPa

Pressure loss at Qmax

0.1 MPa

Sensitivity threshold, max.

0.01

Maximum water flow Qn

Nominal (operating) water flow rate Qn

1.5

Transient water flow rate Qt (metrological class B)

0.12

Transient water flow Qt (metrological class A) Qt

0.15

Minimum water flow rate (metrological class B) Qmin

0.03

Minimum water flow rate (metrological class A) Qmin

0.06

Diameter of nominal passage, DN

15 mm

Type of product according to PP RF 616

Other tools and instruments for measurement, inspection and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
