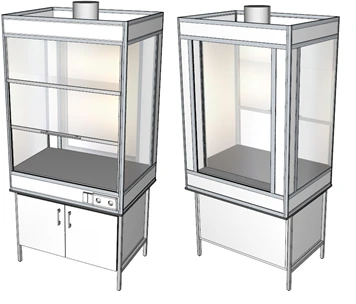

Demonstration Exhaust Cabinet SHVD-1 for Safe Laboratory Applications

Metal Utility Furniture

Manufacturer: ROLL-SERVICE LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Working box: table top, working surface - plastic, resistant to concentrated acids, alkalis, organic solvents. Plumbing - optional. Frame - aluminium profile with a cross-section of at least 27x27mm.

Side walls, front part, back wall - 5 mm thick tempered glass. Lifting screen with the possibility of fixation at any height - material tempered glass 5 mm thick, lifting 0-520mm; counterweights are placed in the side racks; Possibility of placing the lifting screen both from the front and rear side of the cabinet, at the customer's choice. one level of exhaust; PVZ lamp - IP65, flange in the roof - d=200mm.

Support cabinet: body - 16mm thick chipboard; 2 compartments, 2 doors with lock, 2 removable shelves; double switch - 1 pc; automatic circuit breaker 16A - 1 pc; splash-proof sockets with cover (IP20 3,2kW) - 2 pcs; all-welded frame made of metal profile 25x25, powder painted RAL 1001; adjustable supports.

Specifications

Type of product according to PP RF 616

Metal furniture, not included in other groupings

Frame material

Metal pipe of square section 25x25 mm

Housing material

LDPE 16 mm

Availability of glazing

On four sides - 3-5 mm armoured glass

Table top material

LDF 16, 22, 32 mm/ MDF-based plastic 16, 32 mm/ Ceramic tiles 26 mm/ Labgrade monolithic plastic 16, 32 mm/ Labgrade Stratificato laboratory plastic 16, 32 mm/ Artificial stone

Spill-proof edge

availability

Width

900...1800 mm

Depth

600...900 mm

Height

1800...2500 mm

Table top thickness

16...32 mm

Support type

Adjustable in the range 0-30 mm

Frame type

All-welded, not demountable

Assignment

Laboratory, panoramic, demonstration, for chemistry/physics classrooms

Frame Coating

Powder paint according to RAL catalog (white/grey)

Case color

White/gray

Type of facade edge

Shockproof PVC 2 mm

Handles

Trauma-proof aluminum

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
