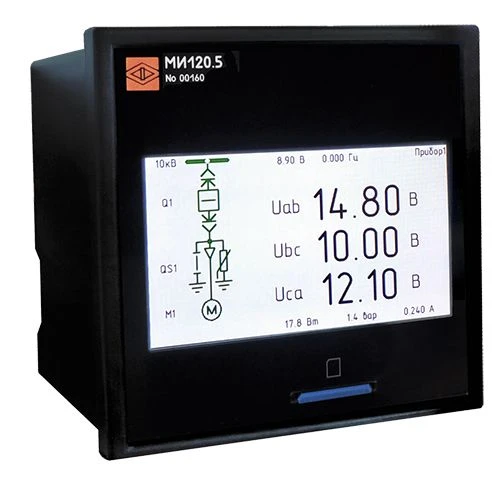

Indication module MI120.5

The MI120.5 indication module is integrated via RS485 (Modbus RTU protocol) and Ethernet (Modbus TCP protocol) interfaces into systems with digital devices and converters manufactured by JSC "Elektropribor" (or other manufacturer) for displaying and storing measured values. The indication module has 2 modes of operation:

1. Master - the indication module initiates the measured value transmission and is a "master" device in pair with a digital instrument or transducer of any third-party manufacturer.
2. Slave - the indicating module is a "slave" device paired with a digital instrument or converter manufactured by Elektropribor.

Advantages of application: various visual forms of measured values representation (in the form of arrow and digital instrument, graphs, mnemonic diagrams); reception of measured values from devices via RS485 (Modbus RTU) and Ethernet (Modbus TCP) interfaces; storage of received measured values on SD-card (16 GB); operative display of the state of the element ... .
