Disc Aggregator AD-3 for Land Processing Available for Import

Disc Aggregator AD-3 for Effective Soil Preparation and Cultivation

Disc Harrows
Manufacturer: KOMZ-EXPORT CJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

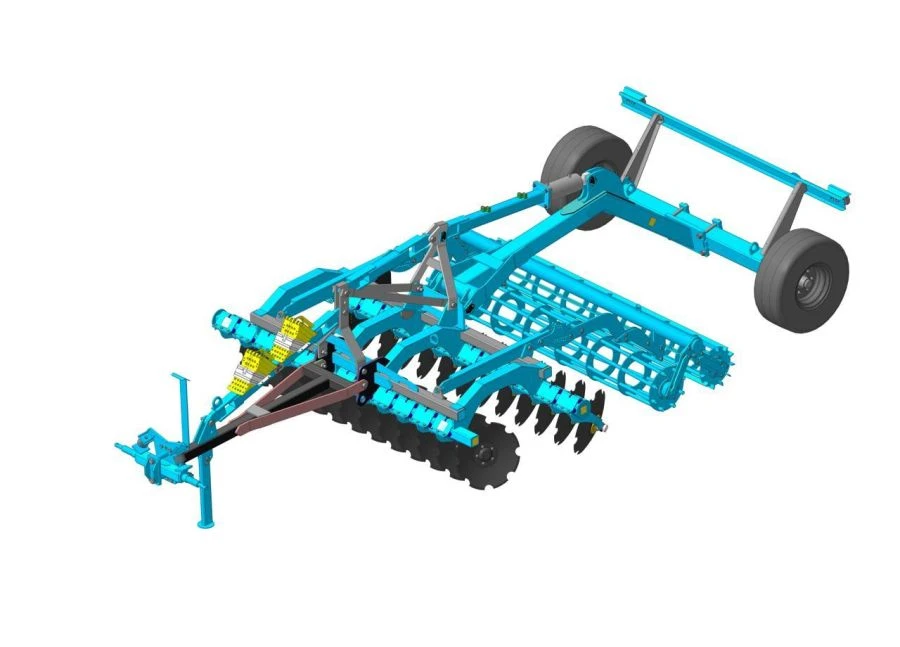

Ad-3 disc machine is designed for cultivation of fallow lands covered with dense vegetation, layer of perennial grasses, stubble husking after harvesting grain and high-stemmed crops, field bread, preparing the soil for sowing, embedding in the soil high-stemmed siderats. It can be used for cutting soil layers after ploughing and surface cultivation of over-compacted soils. The disc machine has a two-row arrangement of disc working tools, behind which the packer rollers are located. Working tools are spherical discs with cutouts, each of which is mounted on an individual arm with spring suspension. The implement can be coupled with tractors of different traction classes.

Specifications

Type of product according to PP RF 616
Disc harrows
Width
3000 mm
Distance between rows
1060 mm
Weight
3300 kg
Number of implement rows
4 pcs
Material of working elements
Metal
Material of frame structures
Metal
Harrow type
semi-mounted
Working width
3 m
Height
2200 mm
Length
7520 mm
Operating speed
10...16
Capacity per hour
3
Diameter of working elements
620 mm
Tractor traction class
3-4
Depth of treatment
2...12 cm
Number of working orans
24 pcs

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
