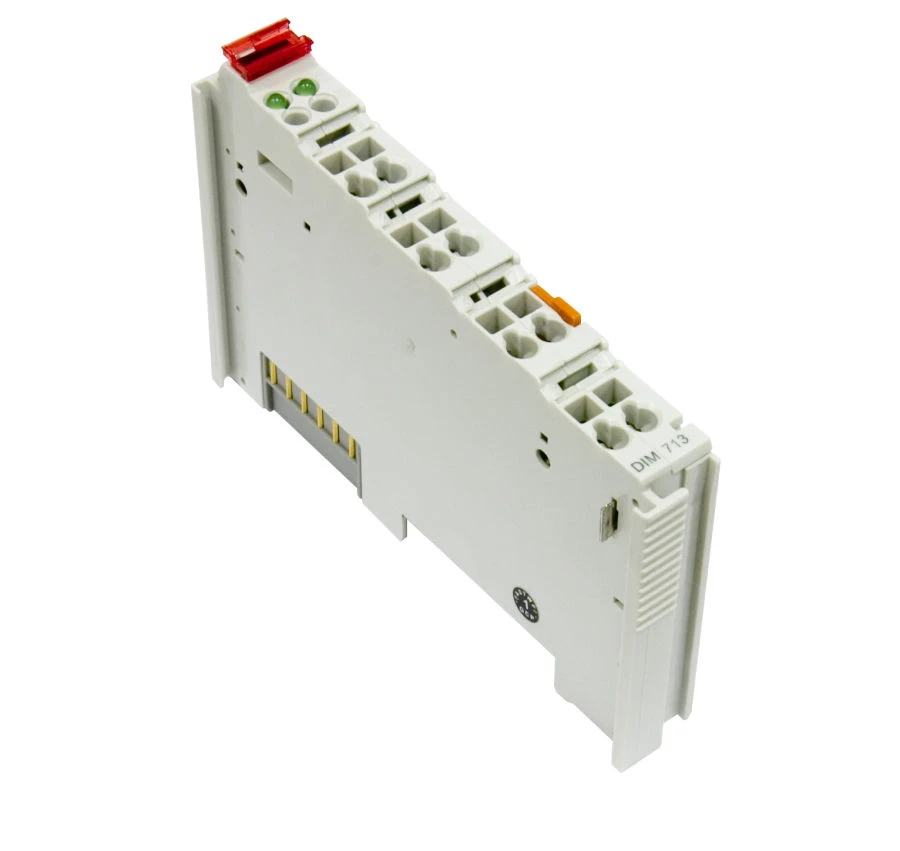

Discrete output module DIM71101-C1 FAPI.421459.711-01

The module is designed to switch loads to the common (minus) wire of the field supply at a field supply voltage of 24 VDC. It has four discrete output channels with a maximum load current of 2A and short-circuit protection. Each channel can also be used to generate a PWM signal with a repetition rate of up to 1000 Hz, a minimum pulse (half-wave) duration of 400 µs and a half-wave sampling weight of 12.5 µs or 50 µs, which can be set when parameterising the module. The module has 4 LED indicators for displaying the logic state of each channel and 4 for displaying error signs by channels.
