Disk Harrow BD 7x4PB with Roller for Effective Soil Preparation

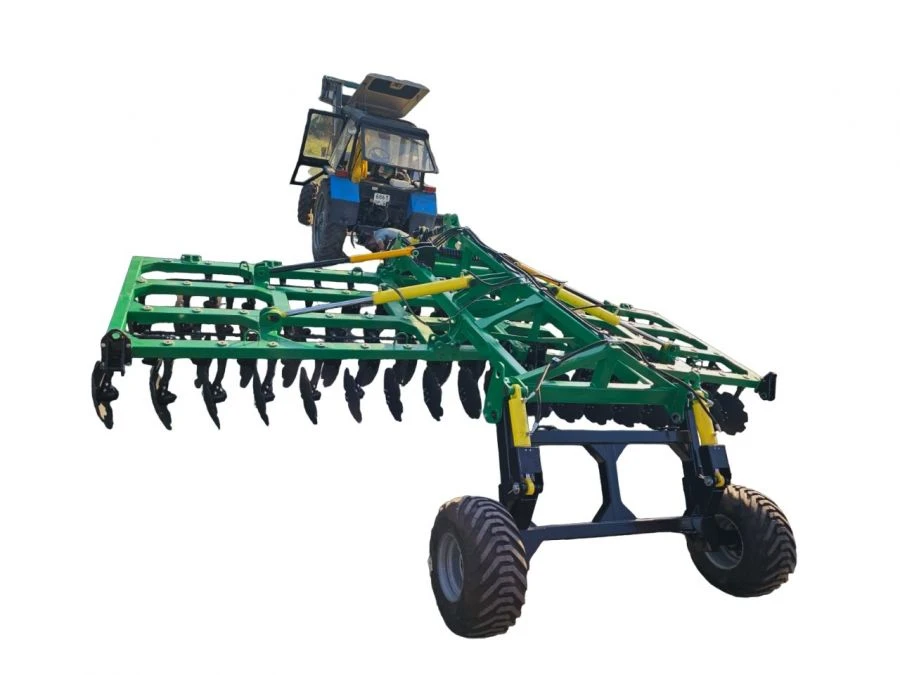

Disc harrow BD 7x4PB with roller
Butterfly" folding disc harrow
Frame made of 150x100x6 profile pipe, support beams - 150x100x8 mm.
Distance between the posts 300 mm, between the rows 1050 mm
Daisy disc 560x6 mm
Lubricated stand 58,5 mm in diameter
Serviceable cutting unit, with reinforced axle and 27 mm nut. O-rings and collars prevent abrasive ingress
Supporting spiral stub roller made of 25x25 mm square
Support slat roller made of 10x50 mm strip
Bearing unit of the roller with rubber shock absorbers, which reduces the load on the bearing
Spring loaded roller support
Unique in Russia, the system of wing clamping (copying the relief of the soil)
