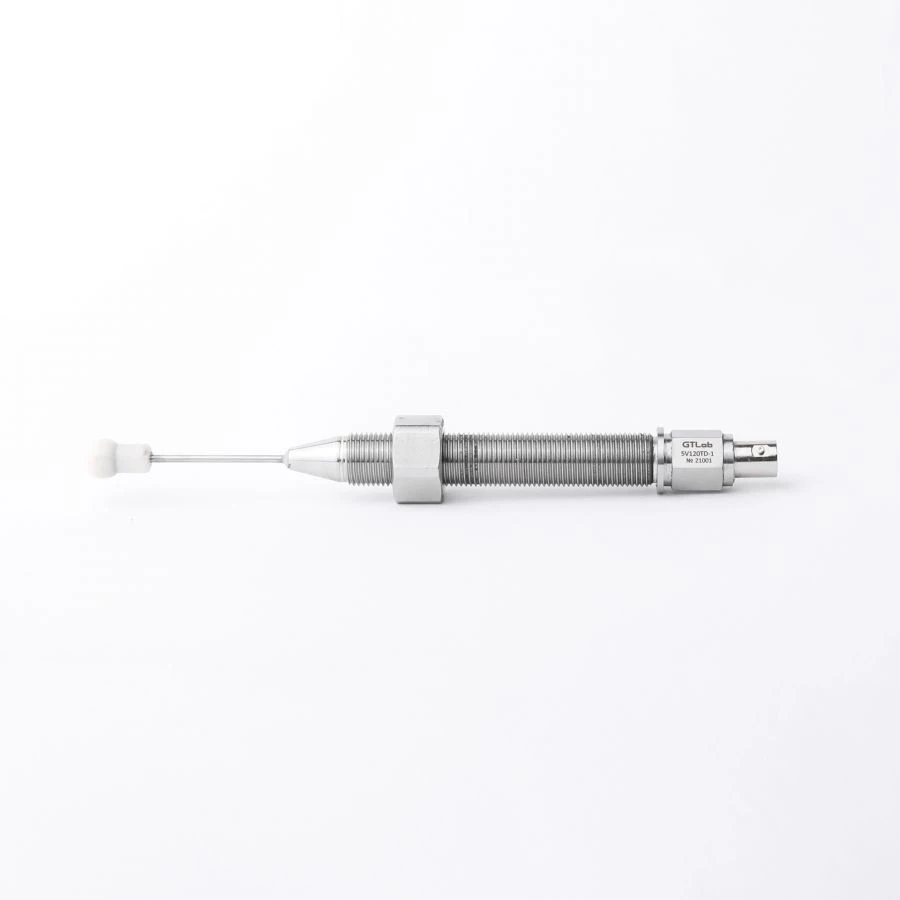

Dynamic Pressure Sensors 5V120TD-XX for Accurate Impact Wave Measurements
Manufacturer:
GTLAB LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Dynamic pressure sensors with spherical sensing element are designed for measuring parameters of shock waves and rapidly variable pressures in liquid and gaseous media.
Specifications
Upper measurement limit
1 000 kPa | 2 500 kPa | 6 000 kPa | 10 000 kPa
Conversion factor
5 mV/kPa | 2 mV/kPa | 0.8 mV/kPa | 0.5 mV/kPa
Limits of permissible basic error reduced to the upper limit of measurement
± 2%
Upper limit of the operating frequency range
> 25 kHz
Operating temperature range
- 30 ... + 50 °?
Output impedance
< 100 ohms
Power supply: ? voltage ? current
+ (15 ... 30) V 2 ... 20 mA
DC output voltage level
8 ... 11 ?
Sensing element material
CTC-19
Housing material
stainless steel
Housing design
M14×1.25 thread
Degree of protection against external influences
IP65
Weight (without cable and connector)
110 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
