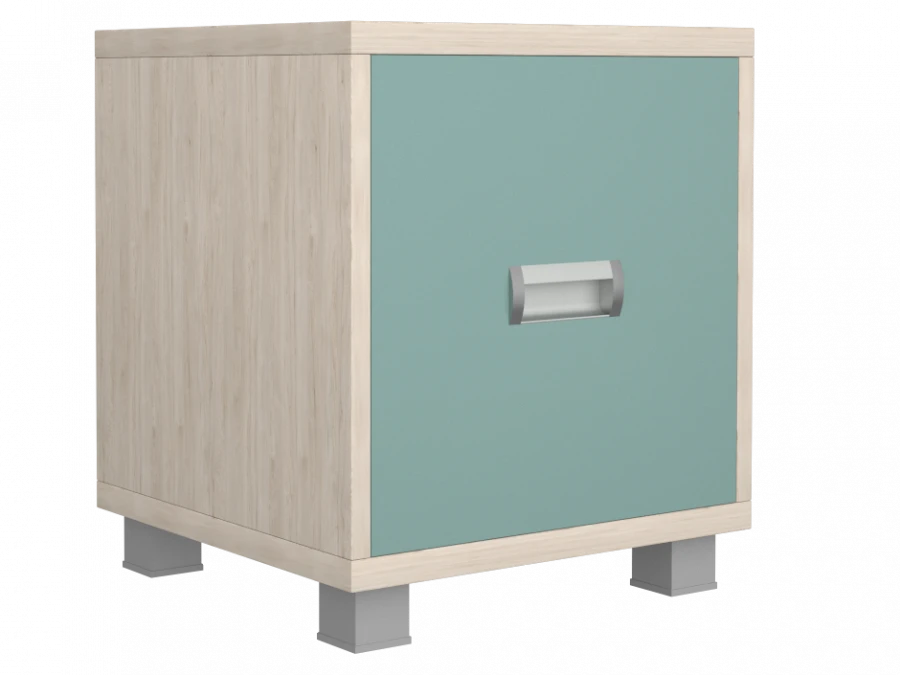

Educational Resource Cabinet Furniture Sections: Fr1.1 for Classroom Use

Dimensions 370x362x432 mm.Top 370x360, LDFP 22m. PVC edging 2mm front, left, right and back 0.4mm. The groove for the back wall (CDF) is located along the back.

Fastened to the sides with eccentric ties and screws. Base 370x362, LDF 22m. The groove for the rear wall (CDF) is located along the rear.

The base has through holes for height adjustment of the supports. Sides 338x360, 2pcs, LDFP 16mm. PVC edging on the front and back 0.4 mm.

The groove for fixing the rear wall (CDF) is located along the rear part. There are holes for fixing the door using Euro screws 6.3x13, holes for installing shelf holders, as well as marks for fixing the rails. Rear wall 348x348, lacquered one-sided CDF, front side white, mounting in grooves.

Plastic supports are height adjustable, rectangular in shape. Height 52mm. Complete with a drawer: Metal handle of mortise type with plastic plugs, fastening with screws.
