Elbrus-4S Multi-core High-Performance Microprocessor 1891VM8A, 1891VM8B, 1891VM8V

Available for Import

Elbrus-4S Multi-core High-Performance Microprocessor for Advanced Computing

Electronic ICs

Manufacturer: MCST OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

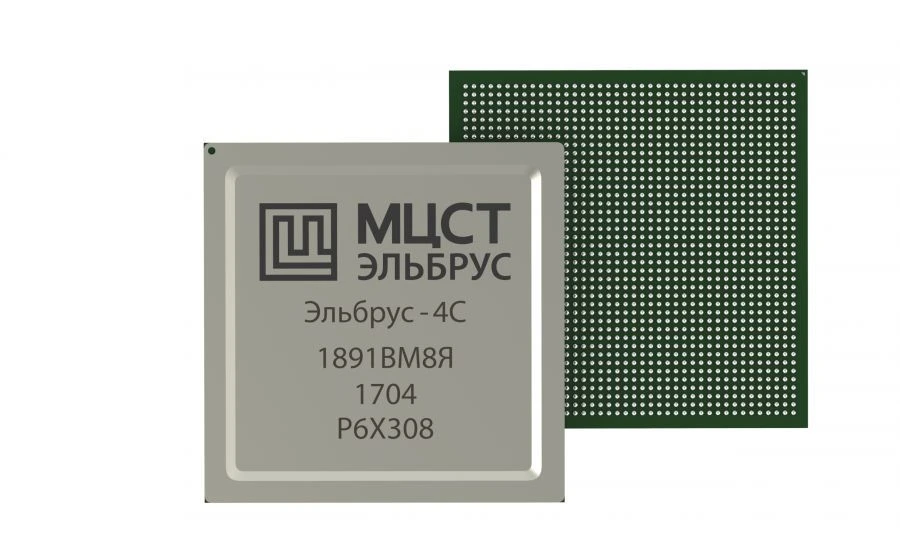

The Elbrus-4C microprocessor (1891VM8Ya) is a multi-core universal high-performance microprocessor built in accordance with the improved Elbrus architecture. Each core of the processor decodes and sends for execution up to 23 operations per clock.

Elbrus-4C is an on-chip system containing 4 computing cores, level 2 cache memory with a total volume of 8 Megabytes, 3 memory controllers, 3 interprocessor communication channels and an I/O channel.

The operating clock frequency of the chip is 800 MHz. The crystal is made according to the 65 nm process standard, the average power dissipation is 45 W. There are means to significantly reduce the power dissipation.

The main sphere of application of Elbrus-4C microprocessors is servers, desktop computers, powerful embedded computers designed to work in spheres with high requirements to the following aspects:

information security operating temperature range product life cycle duration...

Specifications

RAM organization

Up to 3 ddr3-1600 ecc channels

RAM channel bandwidth

38.4

Possibility to combine into a multiprocessor system with coherent shared memory

up to 4 processors

Channels of interprocessor exchange

3, duplex

Throughput of each interprocessor communication channel

B1/B8 2100/900 MHz

Level 2 cache memory (universal)

Number of cores

4 pcs

Architecture

elbrus (vliw)

Operations per clock (per core)

23 pcs

Level 1 data cache, per core

Level 1 instruction cache, per core

128

I/O/RemoteDMA channels

1, duplex

I/O/RemoteDMA channel bandwidth

Compatible South Bridge VLSIs

kpi

Technological process

65 nm

Number of transistors

986

Power supply voltage

1.5 V

Power consumption

45 W

Energy saving technology

Available

Clock frequency

800

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
