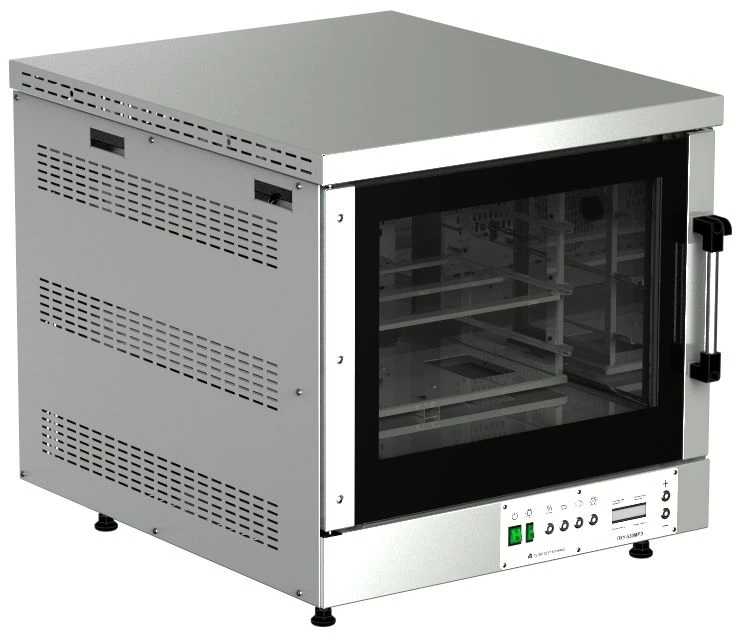

Electric Convection Oven with Steam Moisturizing, Model PKU 530MRE

Available for Import

Electric Convection Oven with Steam and Tray Rotation for Versatile Cooking

Combi Steam Ovens

Manufacturer: TULATORGTECHNIKA OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Convection oven, with rotation (rotation) of trays in the chamber, is designed for heat treatment of various products at temperatures from +50 to +270 degrees Celsius, in modes: "blowing heated, dry air" and "blowing heated, moist air", in the kitchens of catering companies. The rotation of the trays ensures even cooking of the products. The heat chamber of the oven is wrapped with thermal insulation and closed with a double-glazed door.

The door has a mechanical lock and opens from right to left. The chamber is illuminated by two lamps. Two heaters and a fan are installed on the back wall of the chamber.

The heater is connected to the water supply network, with pressure from 50 to 600 kPa (0.5 to 6 atm.). Steam is generated by injecting water onto the heated heating elements. In the rotary cage, on 3 levels, trays 530x530mm are installed.

The oven is equipped with an electronic control panel and a water injection system. The control panel is located at the bottom of the door. The oven is made of stainless steel.

Specifications

Type of product according to PP RF 616

Electric convection ovens

Length

795 mm

Weight

100 kg

Height

735 mm

Voltage on heating elements

230 V

Type

Convection oven, electric, with tray rotation, injected steam system

Power connection parameters

2N 230V ~

Width

950 mm

Rated furnace capacity

7 kW

Overall dimensions of the furnace

Length 795 x Width (depth) 950 x Height 735mm

Temperature regulation in the furnace heat chamber

From +50 to +270 degrees Celsius

Water pressure in the water supply network

50 to 600 kPa (0.5 to 6 atm.)

Number of levels in a rotary baking stand for placing baking trays

3 pcs

Dimensions of the trays (included in the scope of delivery)

530 x 530mm (original)

Rotary stand rotation speed

1.5 to 2.5 rpm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
